21
Mellanox Technologies
6.
7.
1.
2.
3.
4.
5.

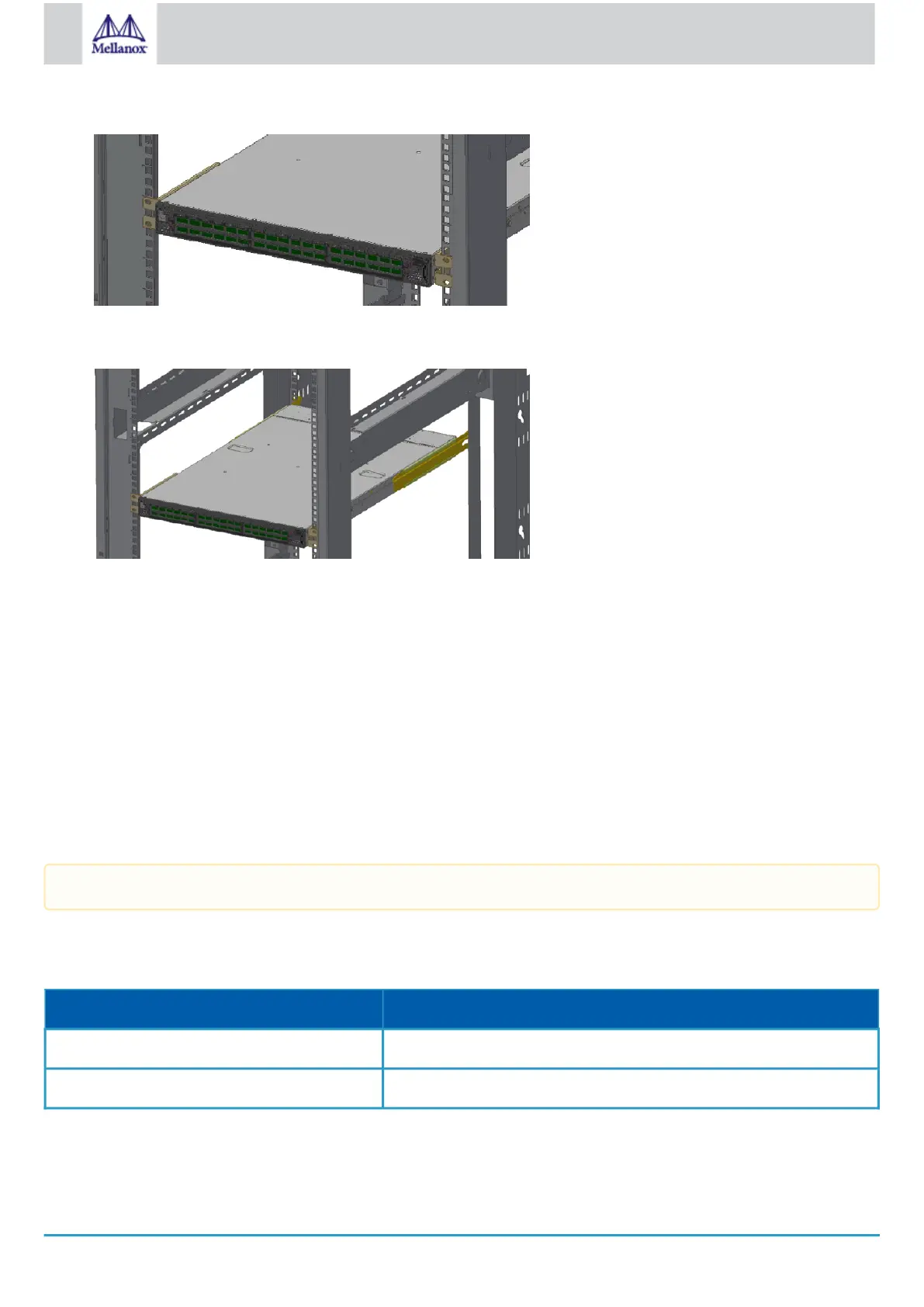

Attaching the Brackets to the Rack
Slide the two blades into the left and right rails, and adjust them to fit your rack's depth. Use four M6 screws (D) to fix the
blades into the rack. Do not tighten the screws yet.
Sliding the Blades in the Rails
Secure the system in the rack by tightening the 8 screws inserted in Step 5 and Step 6 with a torque of 4.5±0.5 Nm.
3.6.1 Removing the System from the Rack
To remove a unit from the rack:
Turn off the system and disconnect it from peripherals and from the electrical outlet.
While your installation partner is supporting the system’s weight:
Loosen the screws attaching the brackets to the rack. Do not remove them yet.
Loosen the screws attaching the blades to the rack, and pull the blades towards you, while your partner is holding the system.
Extract the loosened screws from Step 2 and dismount the system from the rack.
Remove the rails and brackets from the chassis by unscrewing 8 screws.
3.7 SN2700 Telescopic Rail Kit
There are two installation kit options:
Standard depth systems should be mounted using the standard rail kit.
Short depth systems can be mounted using either of the rail kits.
Kit OPN Rack Size and Rack Depth Range
MTEF-KIT-B Short: 17"-24" (43.1 to 61 cm)
MTEF-KIT-S Standard: 24"-34" (61 to 86.3 cm)
The following parts are included in the rail kit package (see figure below):
1x Right inner rail (A) +2x Outer rails (C) - Bundled
1x Left inner rail (B) + 2x Outer rails (D) - Bundled
The telescopic rail kit is not included in the system’s package, and can be purchased separately.
