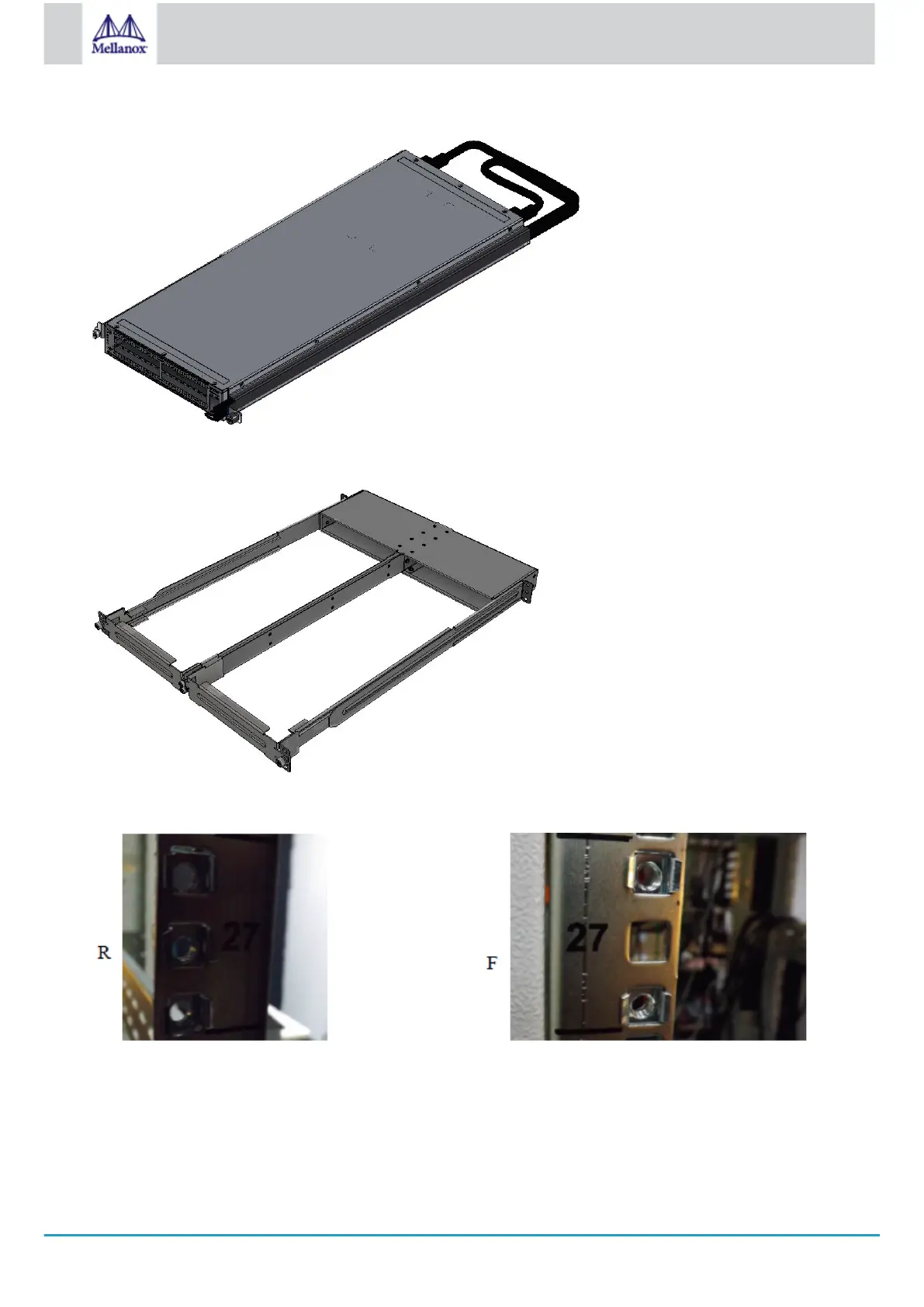

Slide the two frame slides into the dedicated rails in the metal frame.
Sliding the Frame Sliders into the Rails
Step 6. Install ten cage nuts in the desired slots of the rack: three cage nuts in the front part of each cabinet post, and two cage
nuts in the rear part of each cabinet post.
Installing the Cage Nuts
Attach the frame to the rack by using ten spacer cage nuts, and screw ten M6 pan head screws - four in the front part of the
rack, and 6 in its rear part. The recommended torque is 6.55-7.35 Nm. See figure above.
Place the frame in the cabinet.
Attaching the Frame to the Rack
