3.
4.

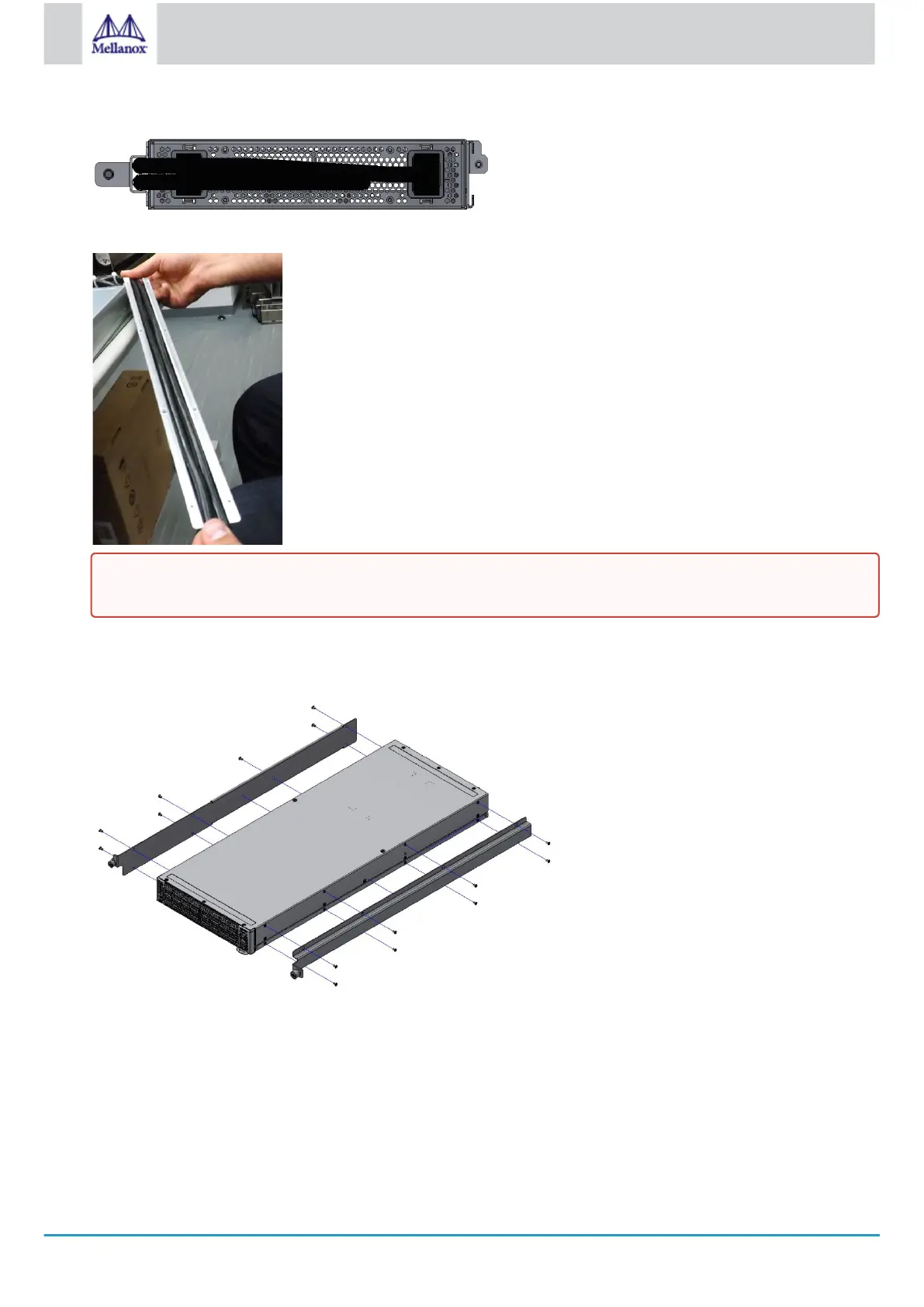

Coupled Cables - Rear View
Place the coupled cables in the designated area within the right flat blade (the blade with 7 screw holes).
Cables within the Rail
While holding the cables stably together in the blade’s rail with one hand, use your other hand to secure the blades to the
chassis. Screw the right blade with eight 4-40 flathead screws, and the left blade with seven 4-40 flathead screws. The
recommended torque is 0.49-0.54 Nm.
Attach the Blades to the System
Attached Rail with Threaded Cables - Top View
In the next step you will be attaching the mounting rails to the switch sides. Before doing that, make sure the cables
are laid properly within them. Avoid using excessive pressure, as it can damage the cables.
