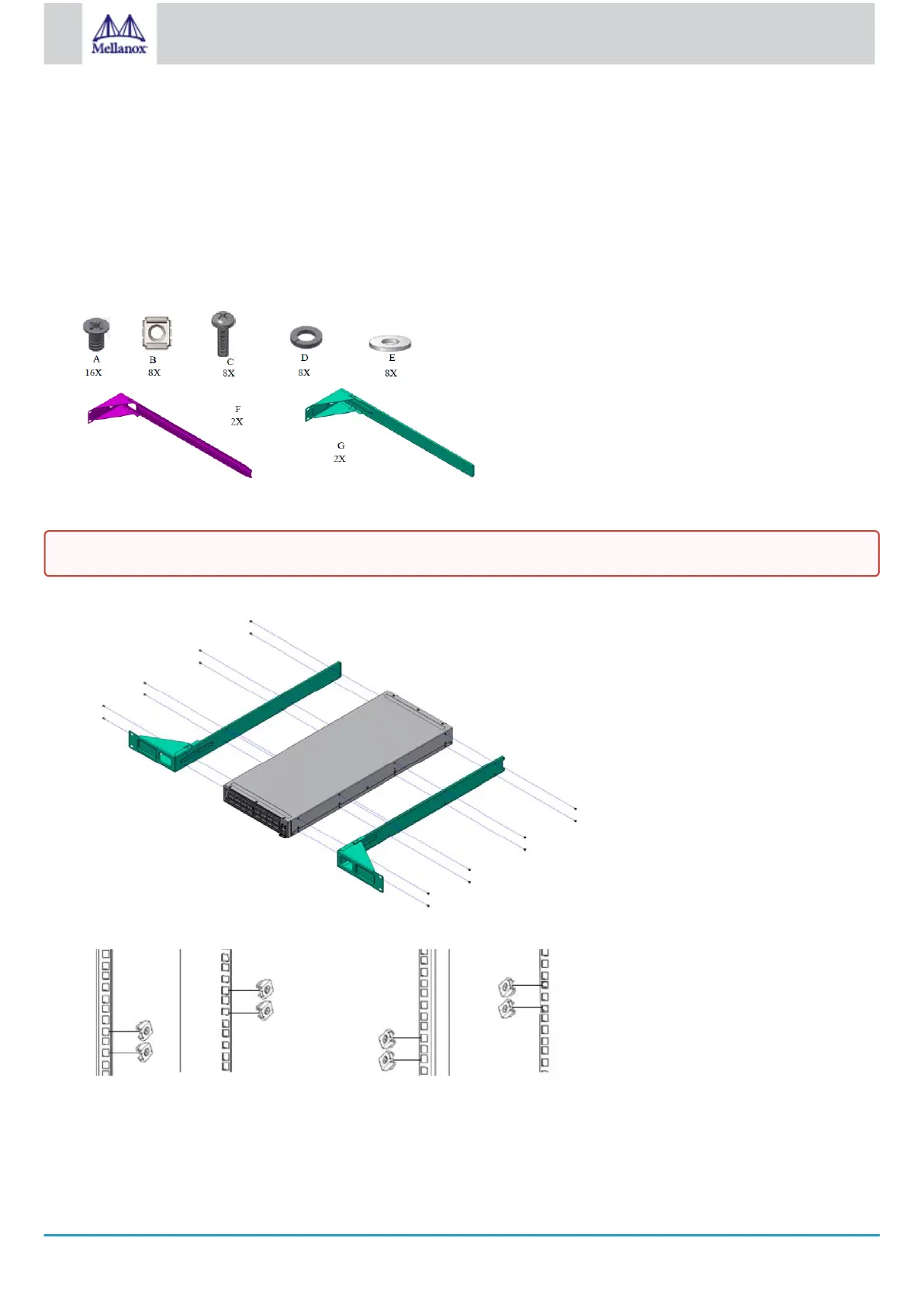

The following parts are included in the rail kit (see figure below):
16 flat head 4-40 screws (A)
8 M6 spring steel cage nuts (B)
8 M6 pan head screws (C)
8 M6 spring washers (D)
8 M6 flat washers (E)
2 rack mount blades (F)
2 system brackets (G)
Rack Rail Kit Parts
To mount the system into the rack:
Attach the 2 system rails to the system’s sides using 8 flat head 4-40 screws (A) in each side.
Attaching the Brackets to the System’s Sides
Install 8 cage nuts of the relevant type - square or round holes, according to your rack type.
Installing the Cage Nuts
While your installation partner is supporting the system’s weight, perform steps 3 and 4:
On the rear side of the cabinet, install the two blades (F) in the selected rack unit, using four M6 screws and washers (C+D+E).
Do not tighten the screws yet.
At least two people are required to safely mount the system in the rack.
