2.5.1 Static Rail Kit for SN2700
The following parts are included in the static rail kit (see Figure 12):
• 2x Rack mount rails (A)
• 2x Rack mount brackets (B)
• 2x Rack mount blades (C)
• 8x M6 Standard cage nuts¹ ² and 8x M6 Standard pan-head Phillips screws¹ (D)
• 4x Phillips100 DEG F.H TYPE-I ST.ST 6-32 X 1/4 screws with a round patch (E)
¹ Other threads are available by special order: M5, 10-32, 12-24
² G-type cage-nut is available by special order.

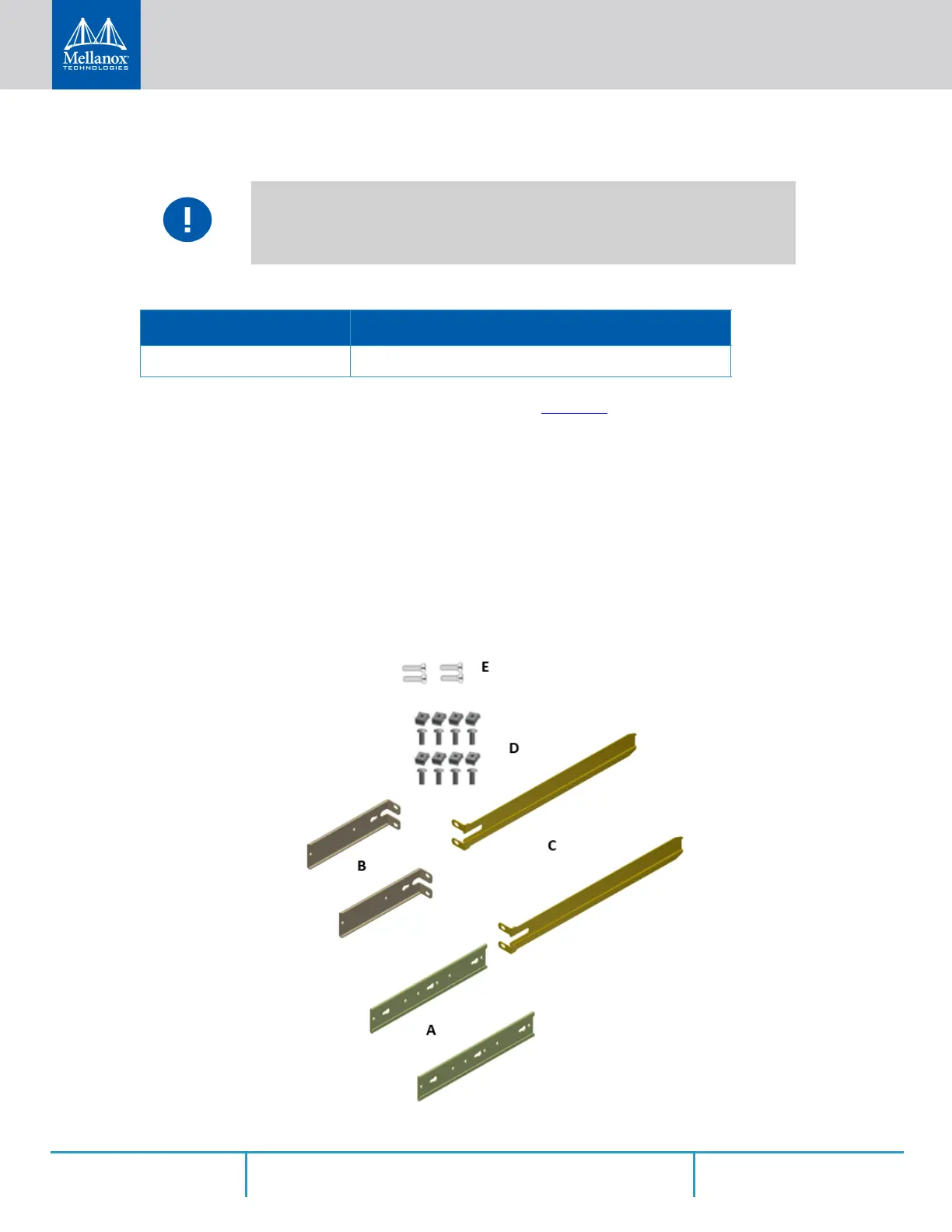

Figure 12: Rack Rail Kit Parts
At least two people are required to safely mount the system in the rack.
Table 7 - Installation Kit
Kit OPN Rack Size and Rack Depth Range
MTEF-KIT-A Short (17”-24”) or Standard (24”-34”)
