2.6.1.3 SN2700 and SN2740 Splitting Options

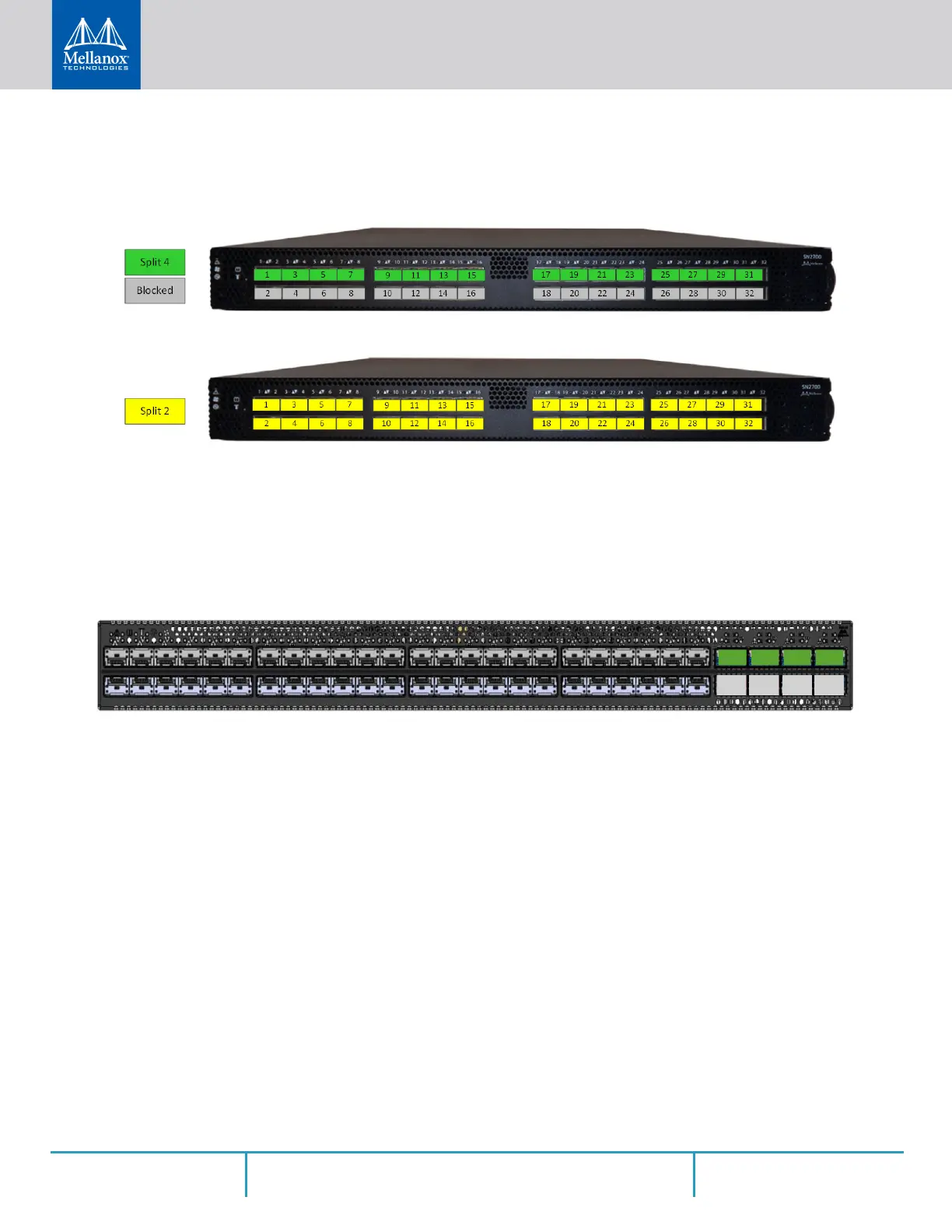

Figure 49: SN2700 and SN2740 Splitting Options
The top QSFP28 ports marked in green are splittable to 4 SFP28 ports, each. The bottom
QSFP28 ports (gray) are blocked when the upper ports are in split mode. All QSFP28 ports can
be split to 2 QSFP28 ports.
2.6.1.4 SN2410 Splitting Options
Figure 50: SN2410 Splitting Options
The top QSFP28 ports - 49,51,53,55 (green) are splittable to 4 SFP28 ports each.
All QSFP28 ports can be split into two QSFP28 ports.
The bottom QSFP28 ports - 50,52,54,56 (gray) are blocked when the upper ports are in split
mode.
