Installation
Rev 2.2
41Mellanox Technologies
holes, the cage nut should be installed vertically with its ears engaging the top and bottom
holes only. See
Figure 31.

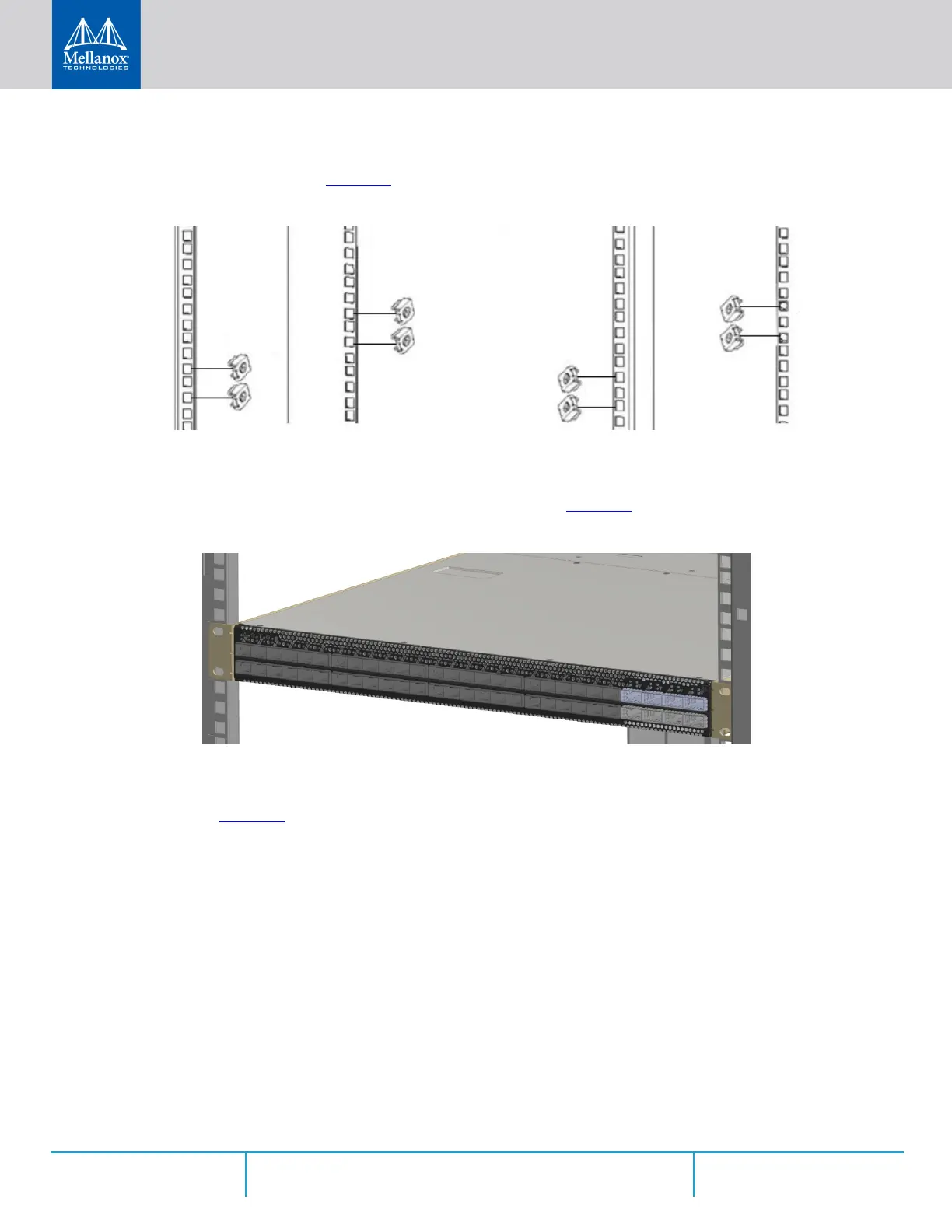

Figure 31: Installing the Cage Nuts
While your installation partner is supporting the system’s weight, perform steps 3, 4 and 5:
Step 3. On the rear side of the cabinet, install the two blades (B) in the selected rack unit, using four
M6 screws (C). Do not tighten the screws yet. See
Figure 32.
Figure 32: Attaching the Rails to the Rack
Step 4. Slide the two blades into the left and right rails, and adjust them to fit your rack's depth. Use
four M6 screws (D) to fix the blades into the rack. Do not tighten the screws yet. See
Figure 33.
