2.2 Rear Panel

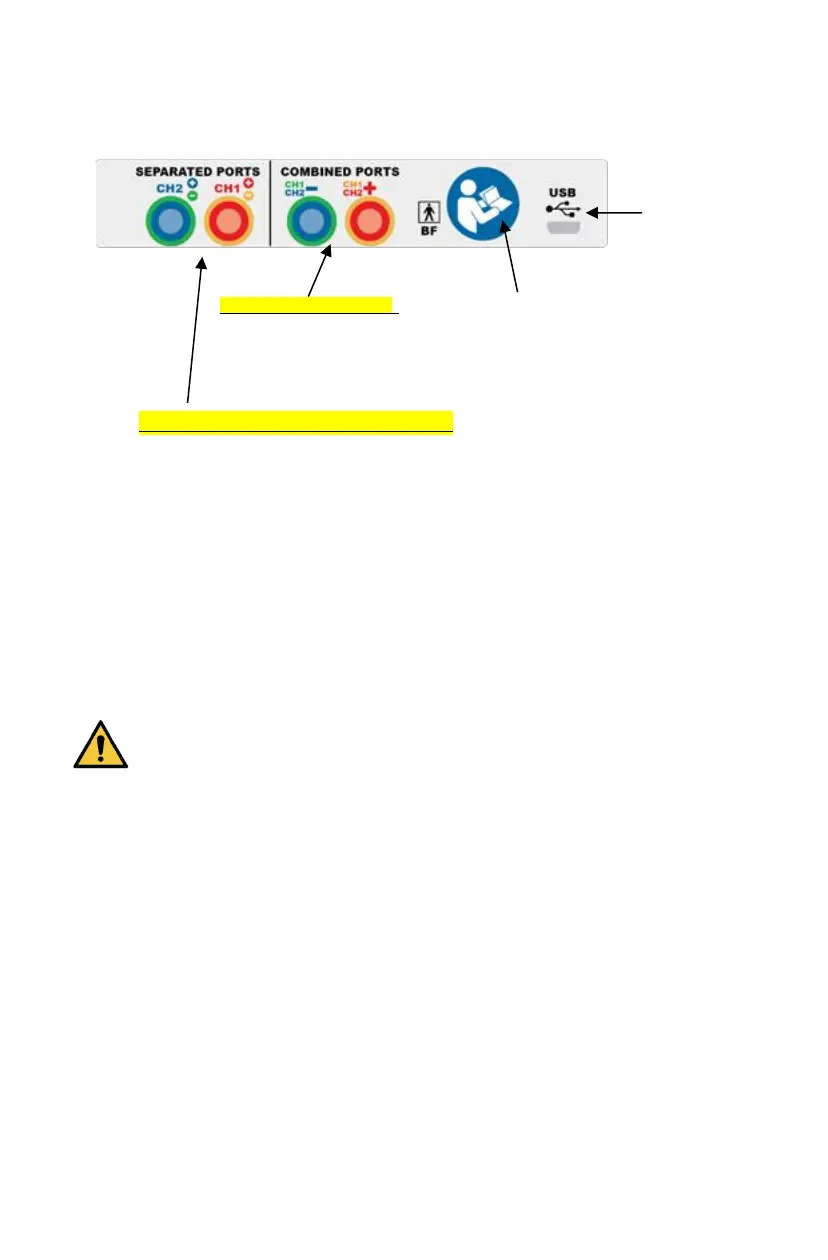

Figure 2 MEND Professional
TM
Output Jacks and USB port
USB Port
The micro-USB port is for communication with the computer only, not to supply
power to the MEND IS02 main device. The MEND IS02 device only operates with
battery power supply.
Equipment that is connected to the Micro USB port interfaces must be
certified according to the respective EN/IEC/UL standards. Certified
computer has one or more of the following markings on the power
supply unit:
Micro USB
connection
to PC
Combined Channel Jacks: Refer to user’s manual for safety cautions.
Positive Jack +: Positive leads of CH1 and CH2
Negative Jack -: Negative leads of CH1 and CH2
Separated Channel Jacks: (Use with probes)
CH1 Jack: positive and negative of CH1
CH2 Jack: positive and negative of CH2
IEC 60950-1
IEC 60950-22
CAN/CSA-C22.2 No. 60950-1
CAN/CSA-C22.2 No. 60950-22
UL 60950-1
UL 60950-22
Information Technology
Equipment Power Supply
I.T.E. Power Supply
I.T.E. Power Supply
QQGQ7 Power Supply
