CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-45
Disassembly (Solenoid Driven Bendix Starter)

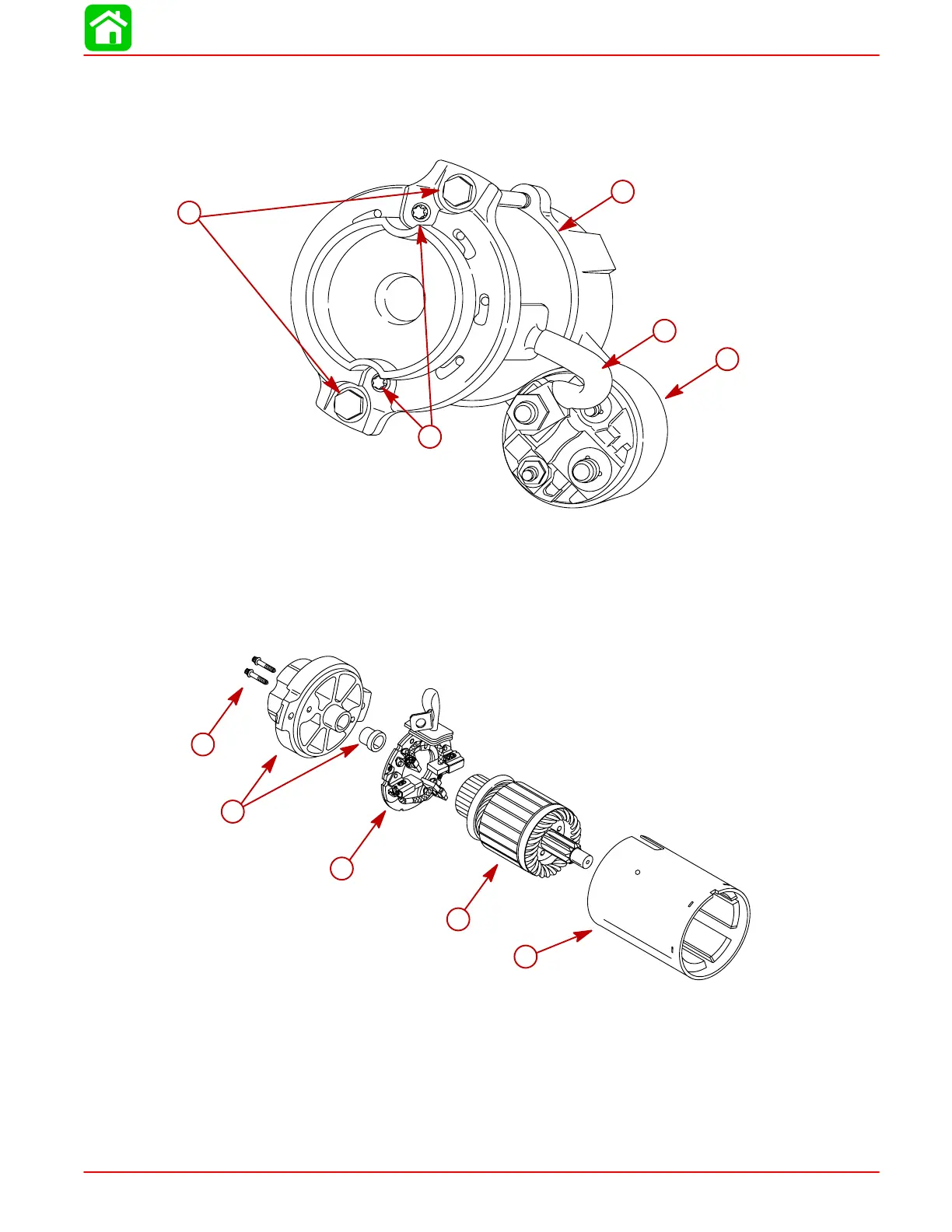

1. Remove brush lead from solenoid and through bolts from end frame.
58434
a
b
e
d
c
a-Brush Lead
b-Through Bolts
c-Starter Solenoid
d-Brush Plate Screws
e-End Frame
2. Remove armature and field frame from drive housing.
NOTE: Permanent magnets inside field frame will be holding armature in place.
58430
b
c
d
e
a
a-End Frame and Bearing
b-Screws (2) [Internal Torx – Snap On E6 Socket]
c-Brush Holder
d-Armature
e-Field Frame
