Mercury 175 EFI

FUEL INJECTION
Page 3B-52 90-883728 JULY 2001

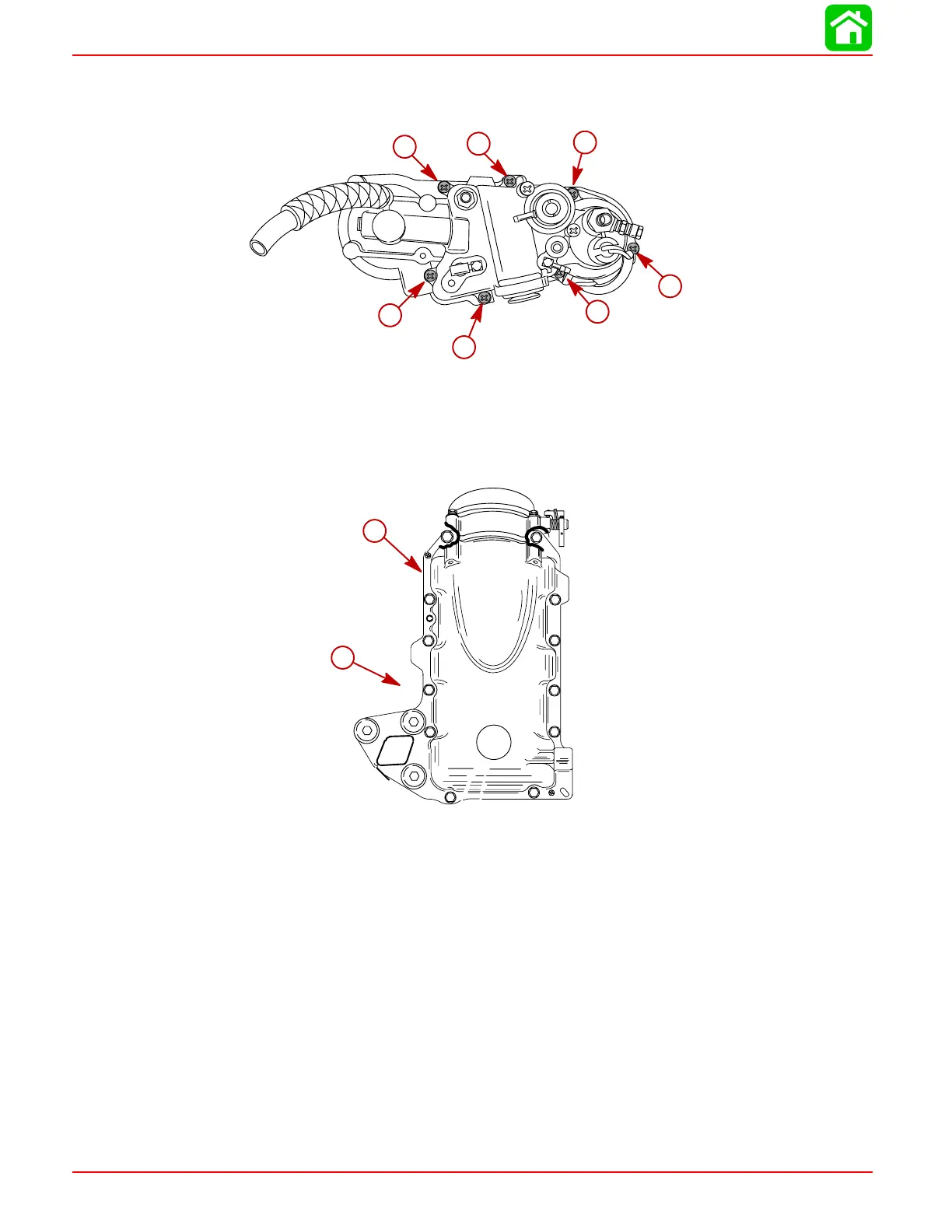

6. Install separator cover with pump onto separator tank.
7. Secure cover to tank with 7 screws. Torque screws to 30 lb. in. (3.5 Nm).
a
a
a
a
a
a
a
58784
a-Screws [Torque to 30 lb. in. (3.5 Nm)]
Air Plenum Installation
Secure plenum to crankcase with 12 bolts. Torque bolts to 125 lb. in. (14 Nm). in sequence
shown
1
2
3
4
5
6
7
8
9
10
11 12
a
b
56144
a-Air Plenum
b-Bolts [Torque to 125 lb. in. (14 Nm)]
