OUTBOARD MOTOR INSTALLATION
90-883728 JULY 2001 Page 1D-3
Installing Outboard
Drilling Outboard Mounting Holes

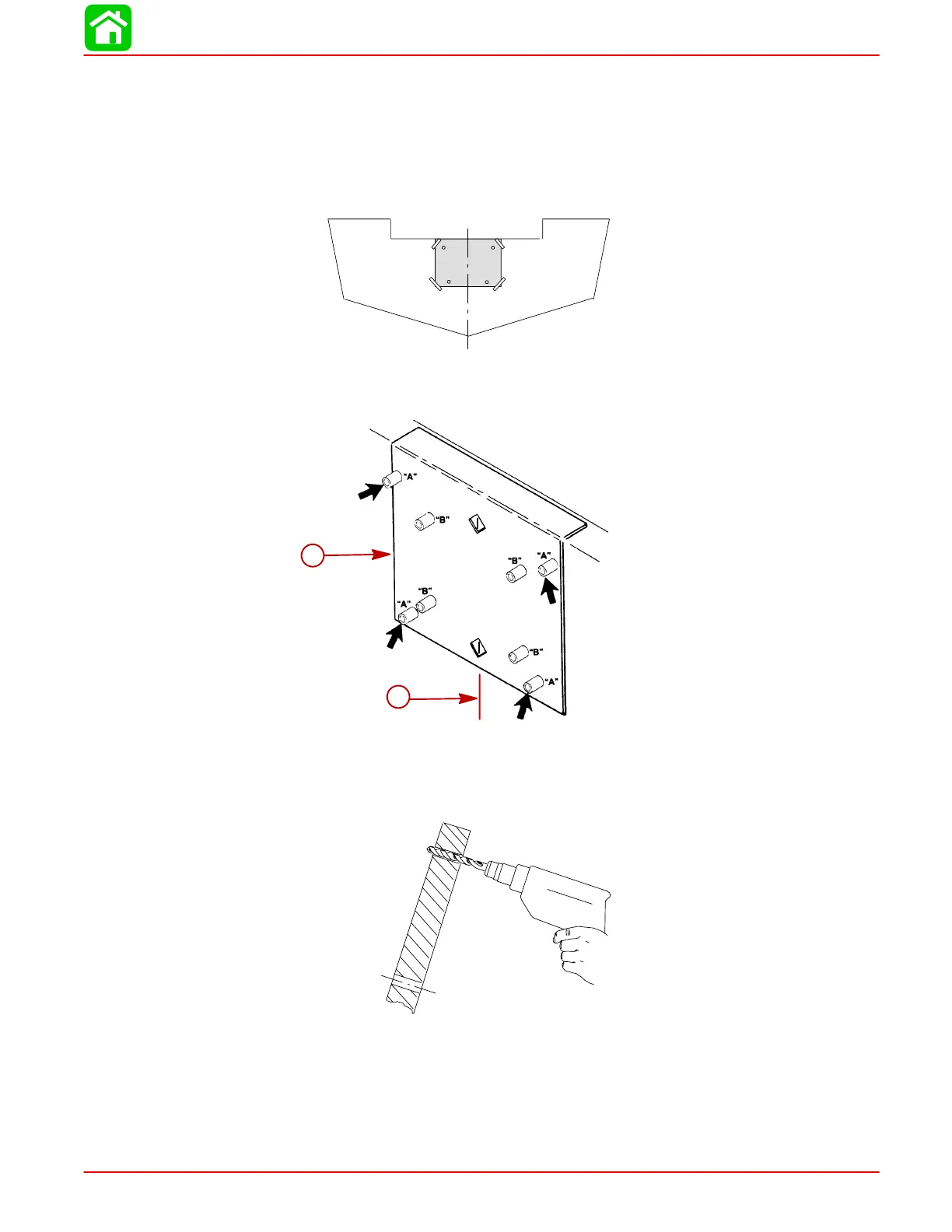

1. Attach (tape) engine mounting template (located with the installation manual) to boat
transom.
IMPORTANT: If using “Transom Drilling Fixture” (91-98234A2), use drill guide holes
marked “A” when drilling outboard mounting holes.
b
a
a-Centerline of Transom
b-Transom Drilling Fixture (91-98234A2)
2. Mark and drill four 17/32 in. (13.5mm) mounting holes.
