Mercury 175 EFI

WIRING DIAGRAMS
Page 2D-6 90-883728 JULY 2001

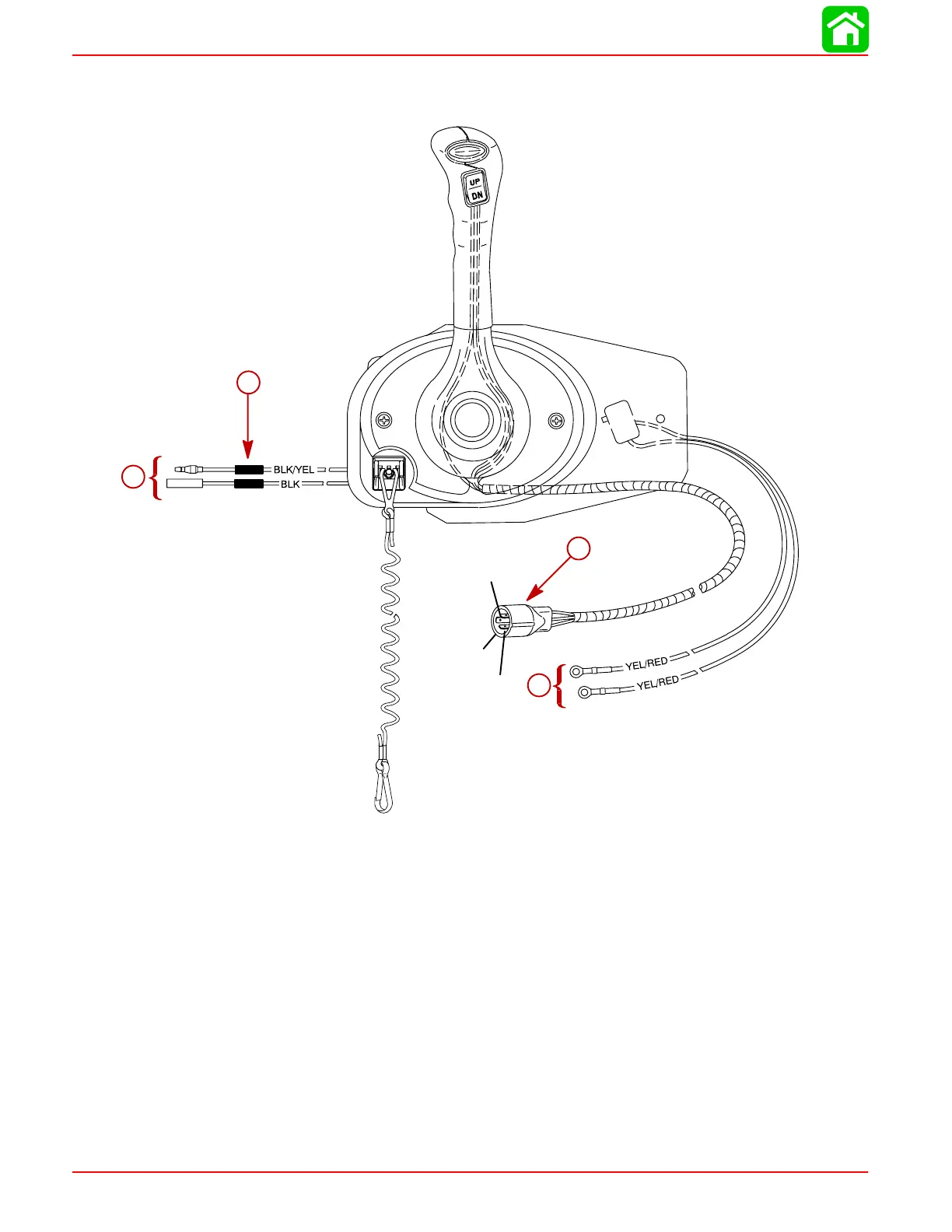

4000 Series Mechanical Panel Control
RED/PURPLE
GREEN/WHITE
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
a
a
58629
BLUE/WHITE
c
b
d
a-Neutral Interlock Switch
b-Solder Connections covered with shrink tube
c-Emergency Stop Switch Harness
d-Trim Harness
