CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-47

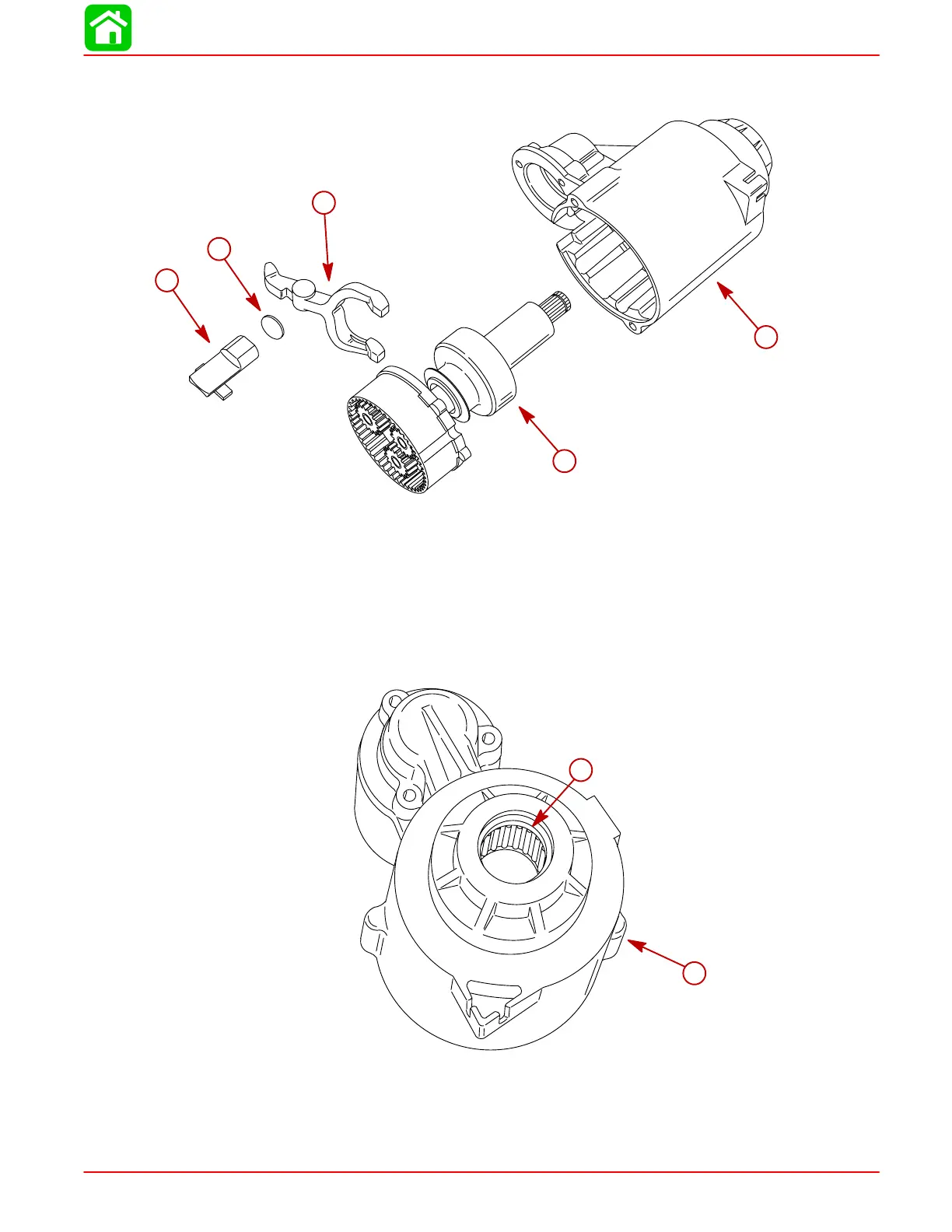

6. Remove planetary gear and clutch assembly from drive housing.
7. Remove solenoid arm, metal disc and plug from drive housing.
58437
a
b
c
d
e
a-Planetary Gear and
Clutch Assembly
b-Drive Housing
c-Plug
d-Metal Disc
e-Solenoid Arm
8. Inspect drive housing needle bearing for roughness. If bearing is worn or damaged,
bearing can be removed by using an appropriate mandrel to drive/press bearing from
drive housing.
NOTE: If bearing has spun in drive housing bore, drive housing must be replaced.
58439
a
b
a-Needle Bearing
b-Drive Housing
