Mercury 175 EFI

FUEL PUMP
90-883728 JULY 2001 Page 3A-11

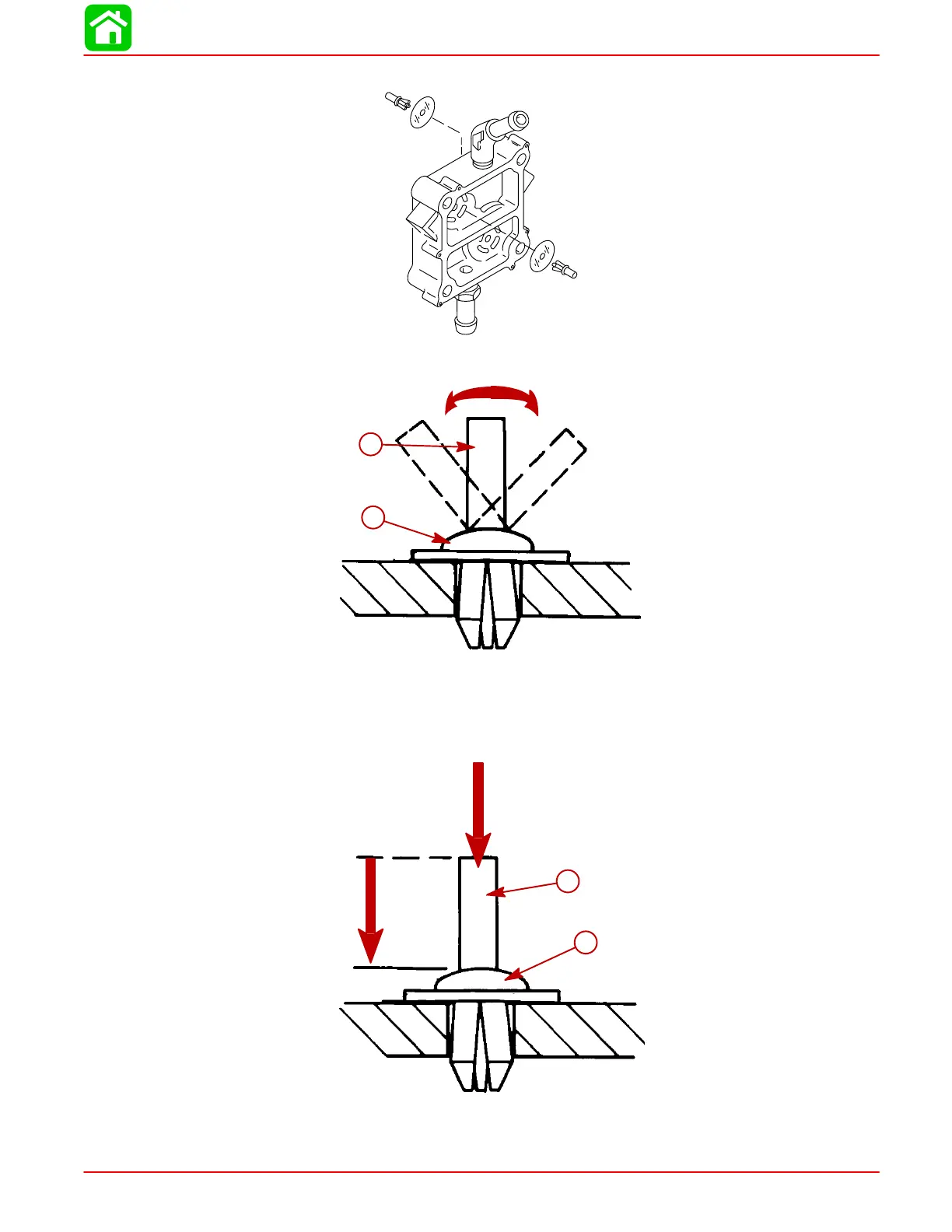

2. Install check valves and retainers into fuel pump body.
58887
3. With retainer installed in pump body, break retainer rod from retainer by bending side-
ways.
23601
a
b
a-Rod
b-Retainer Cap
4. Reinstall rod into retainer cap and, use a small hammer or hammer and punch to tap
rod down into retainer until flush with top of retainer.
23601
a
b
a-Rod
b-Retainer Cap
