Mercury 175 EFI

FUEL INJECTION
Page 3B-44 90-883728 JULY 2001

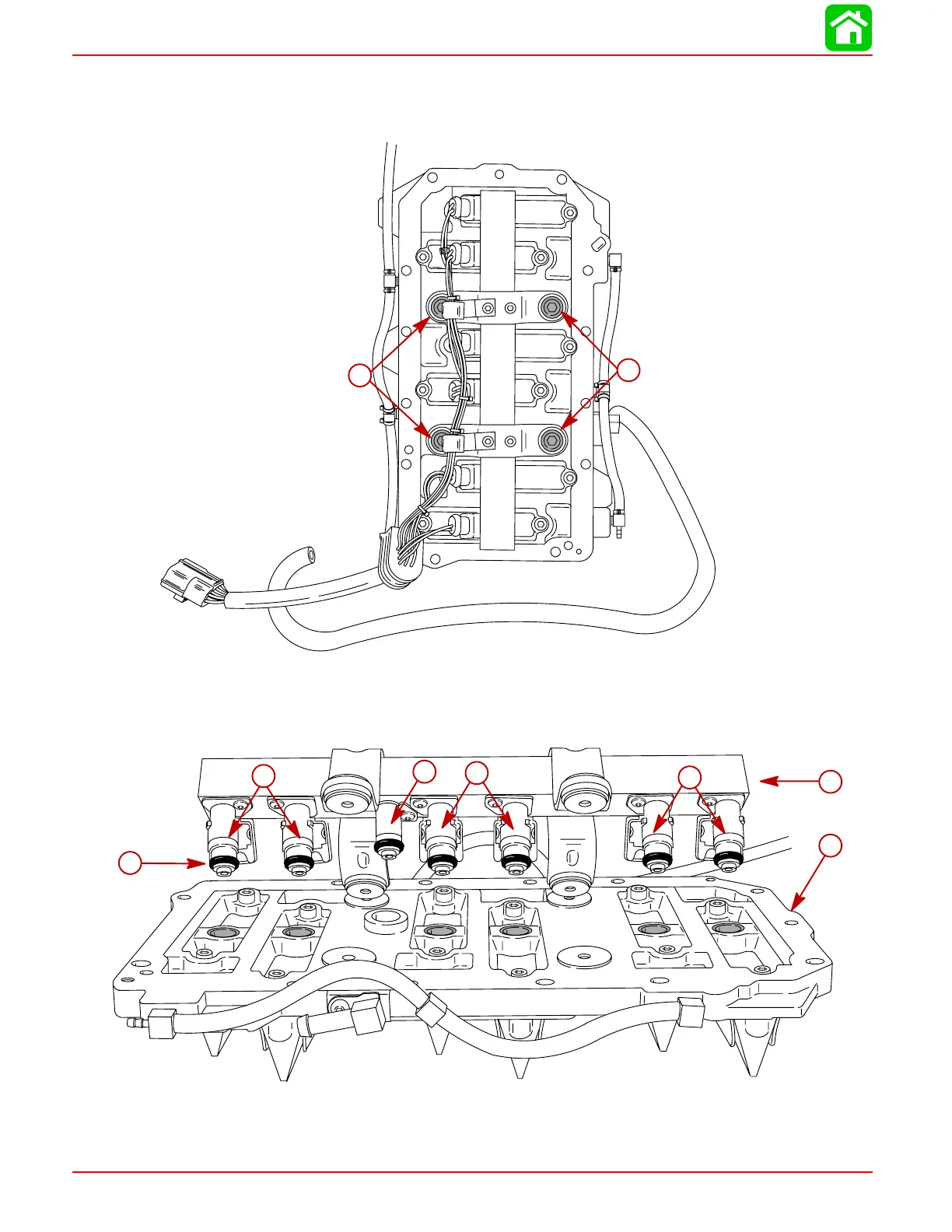

1. Remove 4 screws to securing fuel rail/injector assembly to reed block assembly.
58798
a
a
a-Screws
2. Lift fuel rail assembly from reed block assembly.
3. Inspect o-rings for cuts and abrasions. Replace if necessary.
a
a
a
b
58881
d
c
e
a-Fuel Injectors (6)
b-Fuel Rail Fuel Inlet Pipe
c-O-Rings
d-Fuel Rail
e-Reed Block Assembly
