POWERHEAD
90-883728 JULY 2001 Page 4A-35

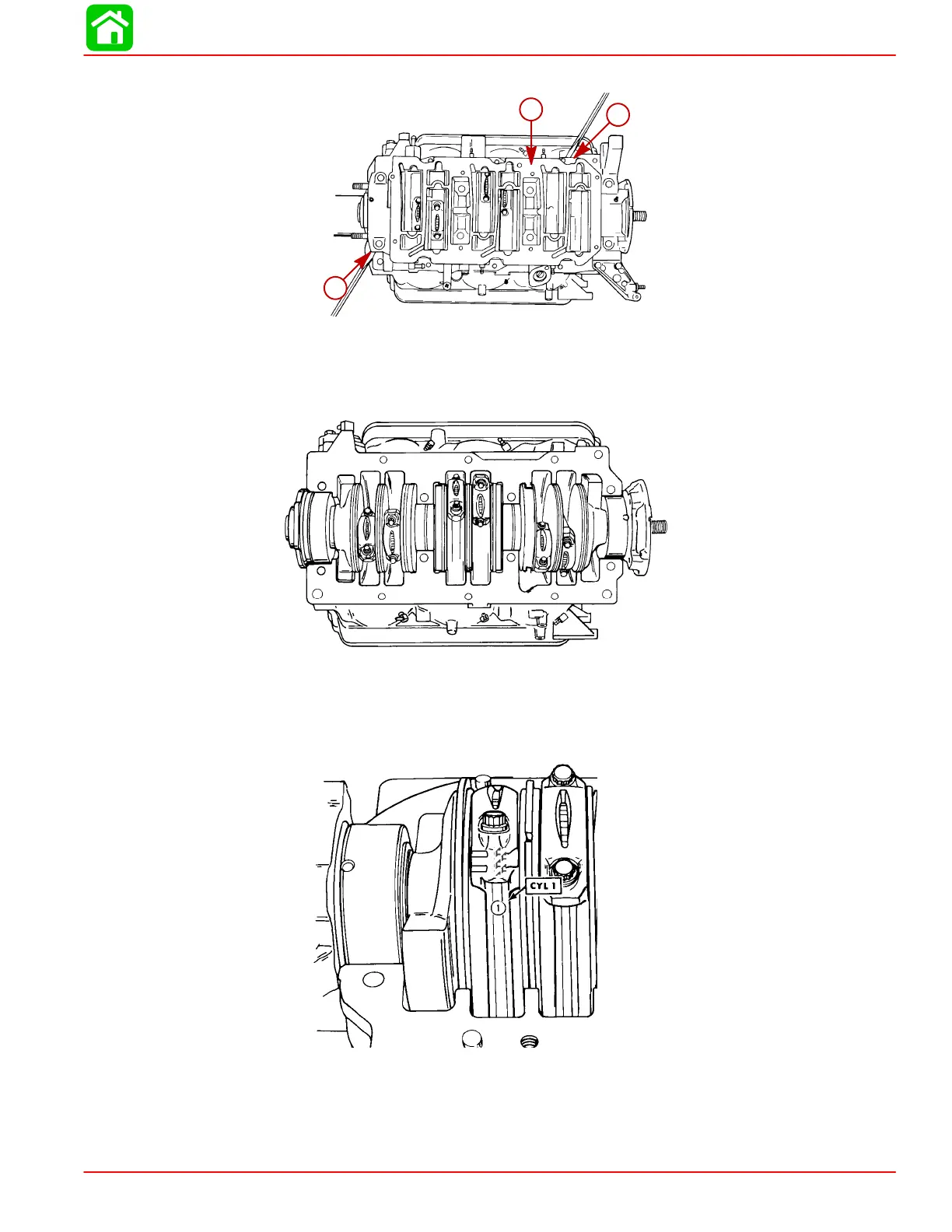

9. Pry crankcase cover off cylinder block using pry bars in locations shown.
a
b
a
51845
a
b
a
a-Pry Points
b-Crankcase Cover
CRANKCASE COVER REMOVED
51848
10. Use Powerhead Stand (91-30591A1) for rotating crankshaft to desired position for re-
moval of connecting rods.
11. Using an awl or electric pencil, scribe the cylinder identification number on each con-
necting rod as shown. Reassemble connecting rods in same cylinder.
51849
