CLAMP/SWIVEL BRACKETS & DRIVESHAFT HOUSING
90-883728 JULY 2001 Page 5A-9

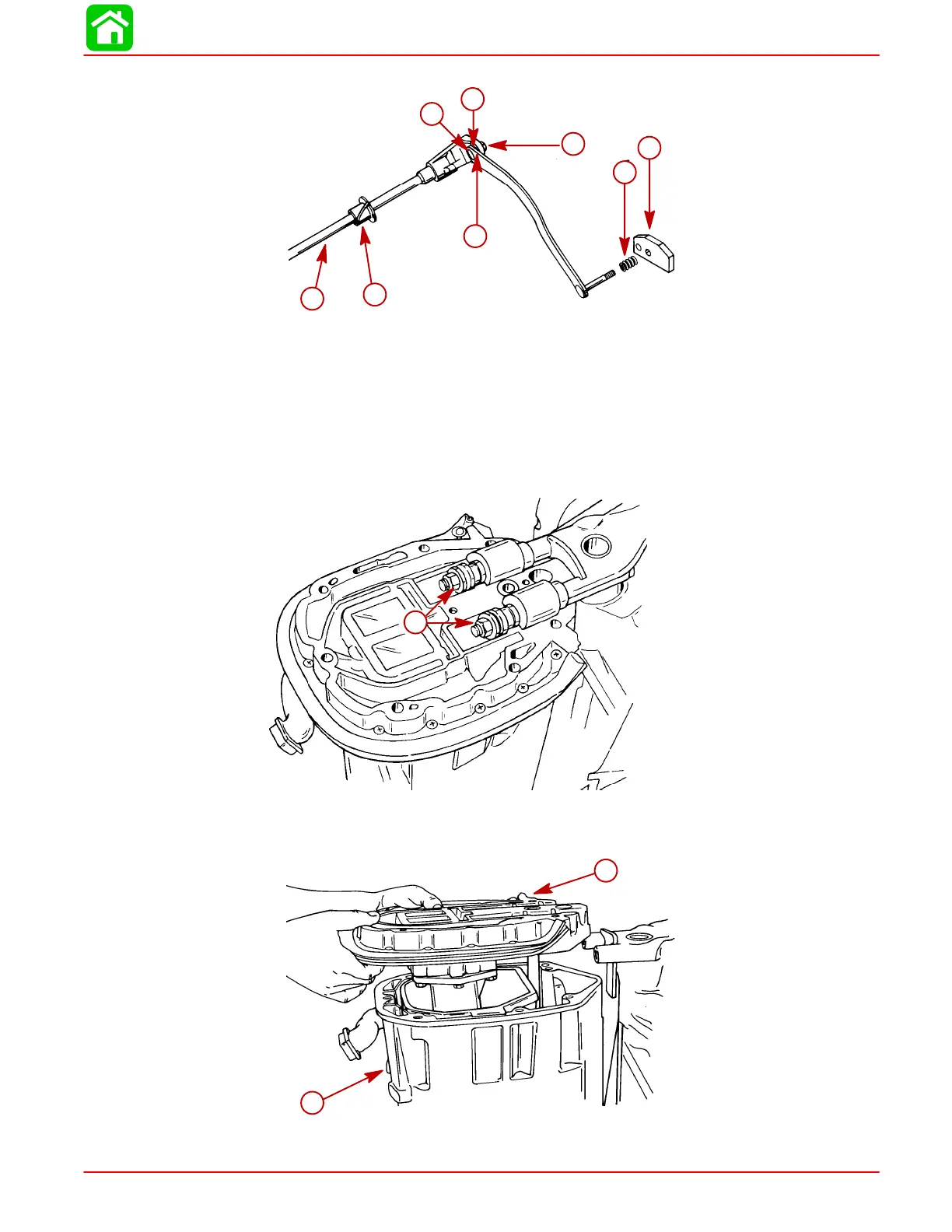

SHIFT LINKAGE ASSEMBLY
a
b
c
d
d
f
g
e
a
b
c
d
d
e
f
g
a-Shift Shaft Assembly
b-Bushing
c-Lock Nut
d-Washer (2)
e-Bushing (Hidden)
f-Spring
g-Guide Block
1. Remove upper mount nuts and flat washers.
a
a
a-Upper Mount Nuts
2. Lift driveshaft housing plate off housing.
a
b
51850
a
b
a-Drive Shaft Housing Plate
b-Drive Shaft Housing
