200/225/250/275 VERADO 4-STROKE
Page 18 / 51 90-10238051
NOTE: On multiple installations, the Automatic Battery Switch (ABS) (87-895091K01),
must be used to connect all outboard starting batteries to the power steering pump. The
ABS allows battery voltage to be drawn from the starting battery with the highest state of
charge.

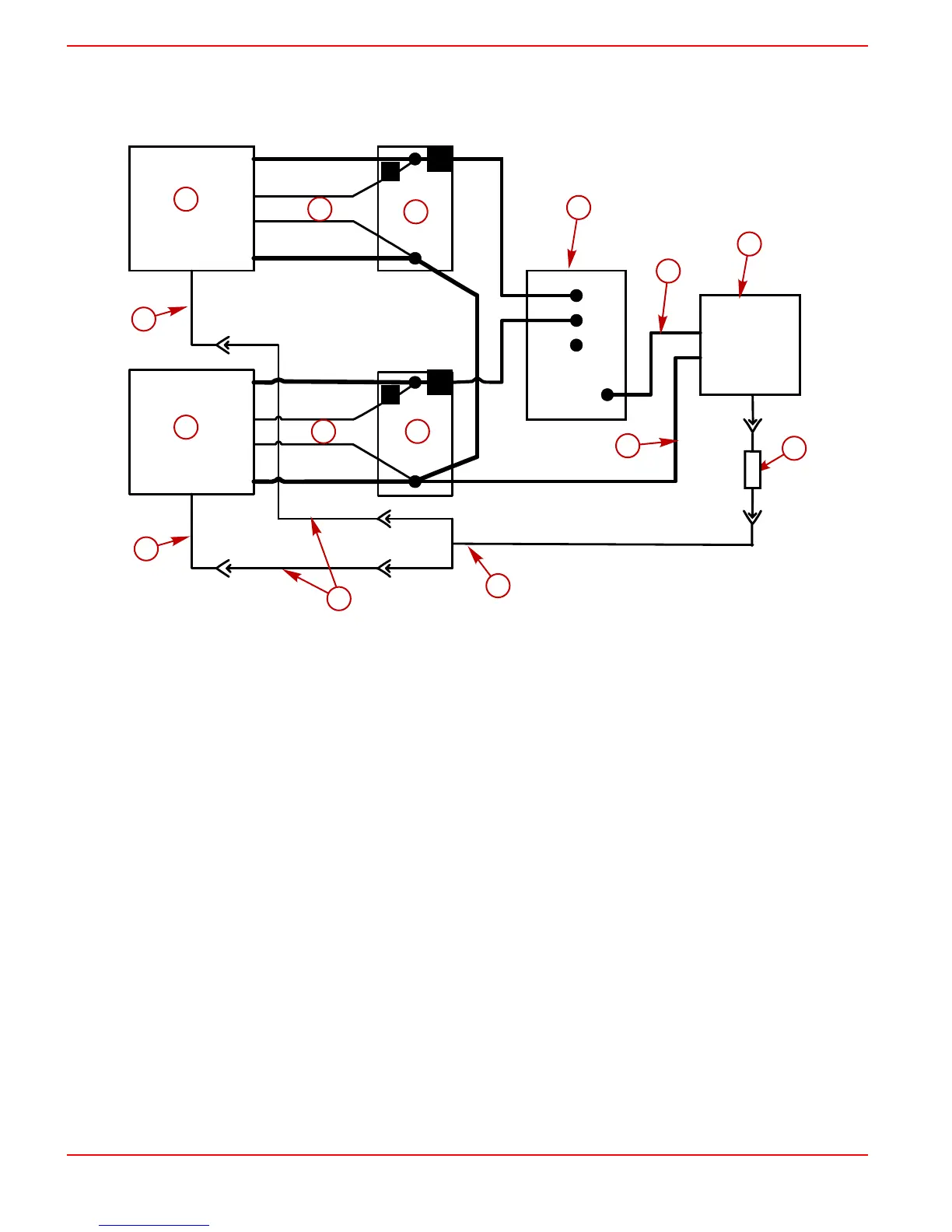

Dual Engine Application
a - Port engine
b - Starboard engine
c - Port battery
d - Starboard battery
e - Automatic Power Switch (APS)
f - Power Steering Pump
g - Power steering pump 12V positive
harness
h - Power steering pump ground
harness
i - Driver module
j - Dual engine power steering adaptor
k - DTS power harness
l - Power steering signal harness
m -Engine signal harness
