Mercury 200 VERADO Installation Manual

200/225/250/275 VERADO 4-STROKE
Page 14 / 51 90-10238051
Helm Fitting ID Mark Hose ID Mark Description
R R-STAR Hose connects to starboard side of steering cylinder
L L-PORT Hose connects to port side of steering cylinder

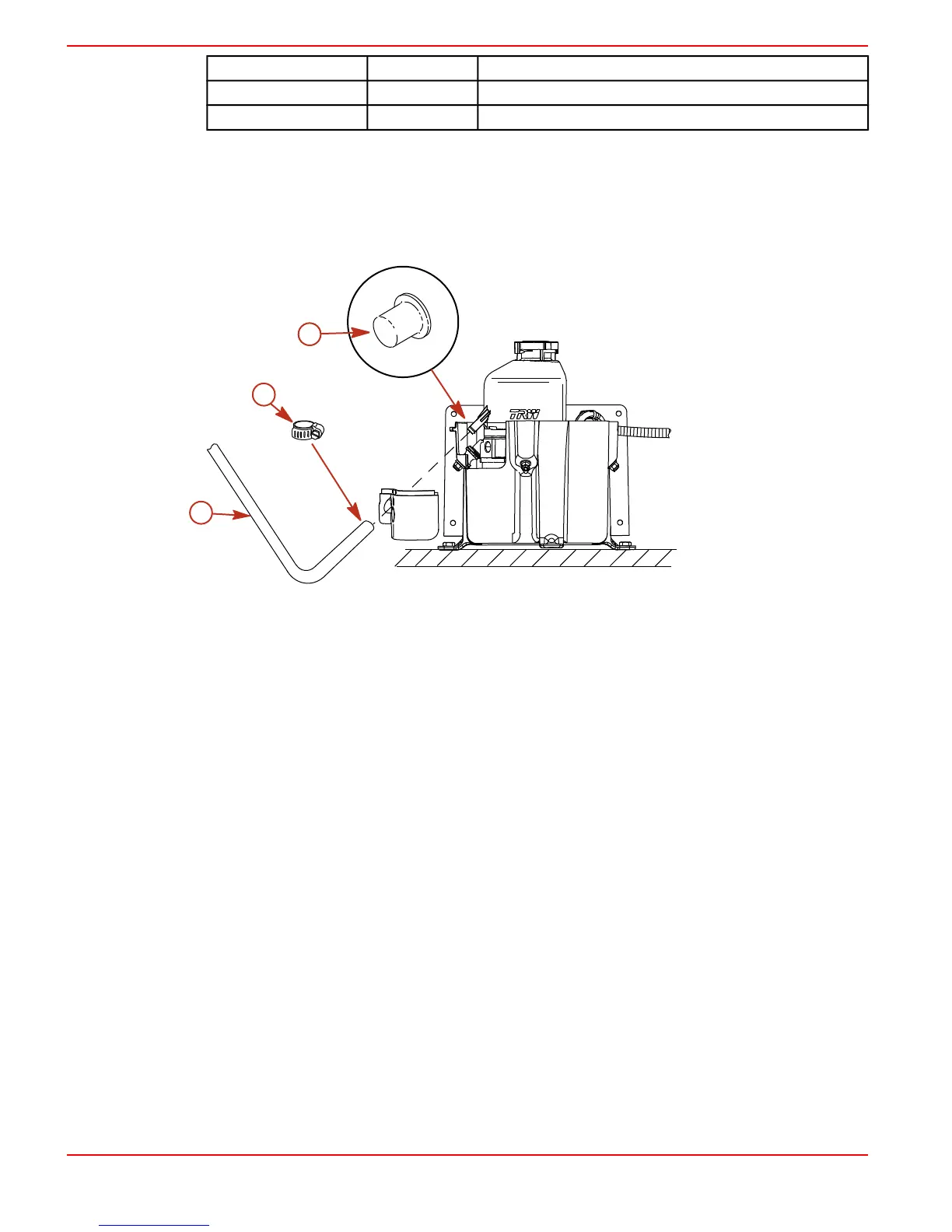

Connection of the Hydraulic Hoses to the Power Steering Pump
1. Remove and discard the yellow protector cap from end of tank low pressure fitting.
2. Connect the low pressure hydraulic hose from the steering helm to the low pressure
fitting on the pump reservoir as shown. Fasten hose to fitting with constant tension
spring clamp.
b
c
ob01462
a
a - Yellow protector cap (remove and discard)
b - Low pressure hydraulic hose from steering helm
c - Clamp
3. Ensure that O-ring seal is on end of hose.

Mercury 200 VERADO Specifications

General

Engine Type	4-Stroke
Gear Ratio	1.85:1
Full Throttle RPM Range	5800-6400 RPM
Fuel System	Electronic Fuel Injection (EFI)
Exhaust	Through Prop
Horsepower	200 HP
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20", 25"
Starting	Electric
Fuel Type	87 Octane
Cylinder Configuration	Inline-6
Cooling System	Water-cooled with thermostat
