200/225/250/275 VERADO 4-STROKE
90-10238051 Page 31 / 51
Installing DTS Command Module and Harness - Single Engine
HARNESS INSTALLATION
• Locate a routing path for the harness connections so they reach their installation
points.
• Inspect the routing path to make sure surfaces are free of any sharp edges or burrs
that could cut the harness.
• Fasten and support the harness with clamps or cable ties along the routing path.
• Make sure all connections are tight and seal all unused connectors with weather caps.

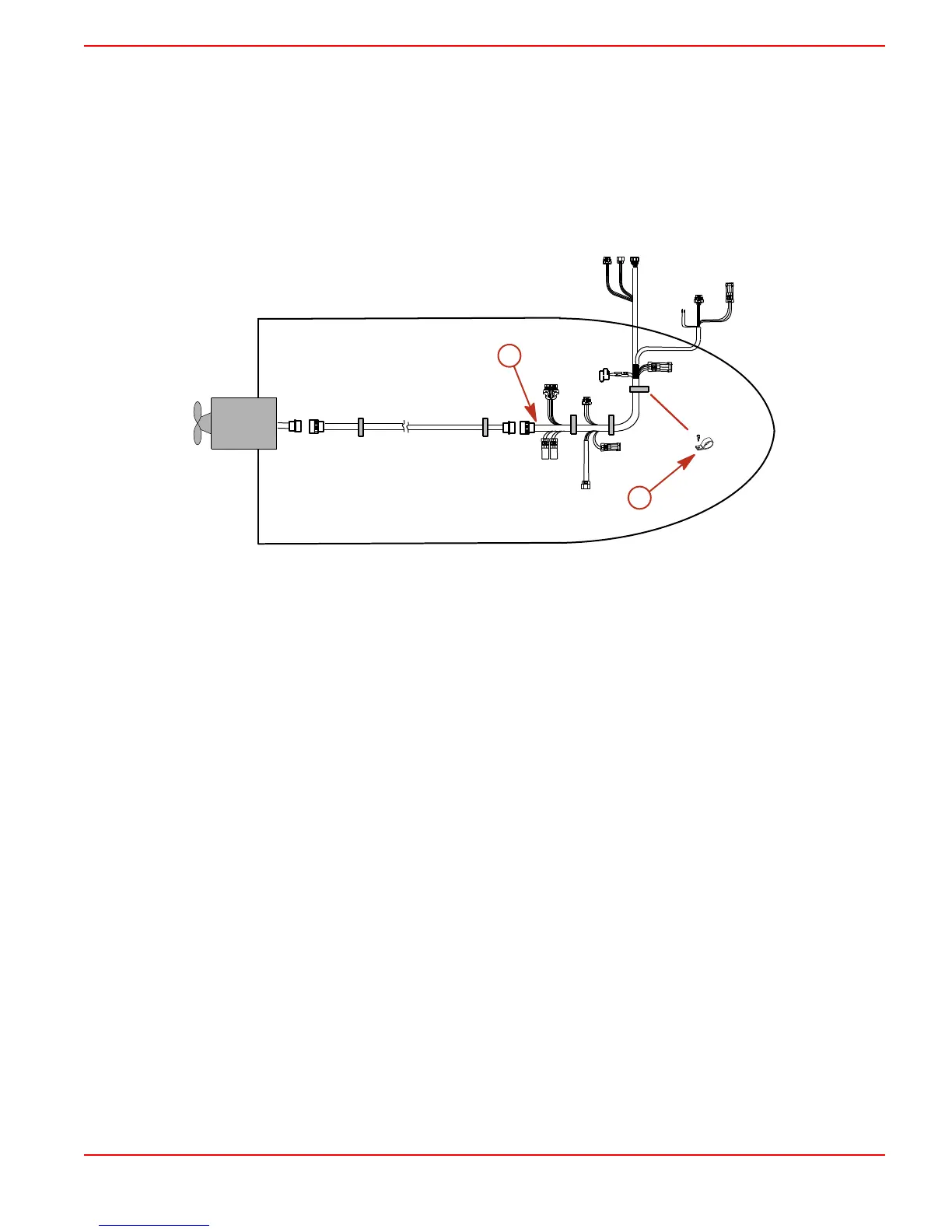

Single Helm Application
a - DTS command module harness b - Clamp or cable tie
To Next Page
