200/225/250/275 VERADO 4-STROKE
Page 10 / 51 90-10238051
Power Steering Installation

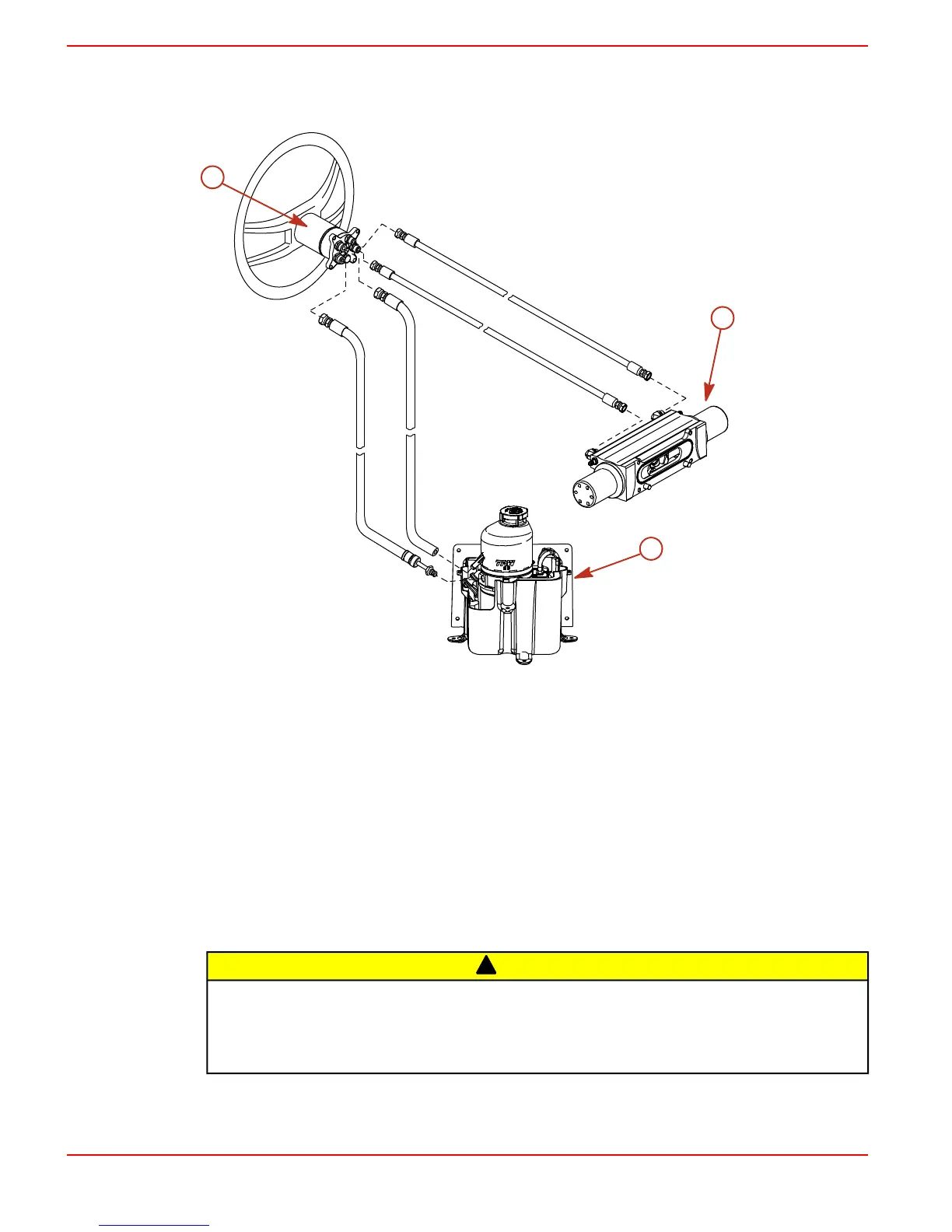

Power Steering System
a - Steering helm
b - Steering cylinder on outboard
c - Power steering pump
Installation Procedure
NOTE: On some large/heavy dual outboard boats the steering forces generated in
extreme maneuvers may create loads that exceed the pump's pressure capacity. If the
happens, the operator may feel intermittent periods of load feedback at the steering
wheel. The steering wheel may feel hard to turn for brief periods during these extreme
maneuvers. If this happens and steering performance is deemed unacceptable for the
application, a second (accessory) cylinder may be rigged. When using a second steering
cylinder the 40cc helm should be replaced with a 50cc helm.
SELECTING LOCATION FOR THE POWER STEERING PUMP
CAUTION
To ensure proper steering operation, hydraulic power steering system must be
protected from contamination. Make hydraulic connection in a clean work area. Route
hoses with the protective shipping caps in place. Remove protective shipping cap from
hose and component fitting as each connection is made.
1. Select a mounting location (floor or side of internal bulkhead) for the installation of the
power steering pump that meets the following requirements
To Next Page
