CAUTION
To avoid loss of outboard, ensure that a minimum of two full threads of bolt extend
beyond locknut after tightening locknut. Ensure mounting nut is tightened against
transom, not the shank of the mounting bolt.
a
b
c
d
5552
e
a - Transom bolts (1/2 x 20) (4)
b - Flat washers - outer (4)
c - Nylon insert locknuts (4)
d - Flat washers - inner (4)
e - Marine sealer - apply to shank of
bolts, not threads

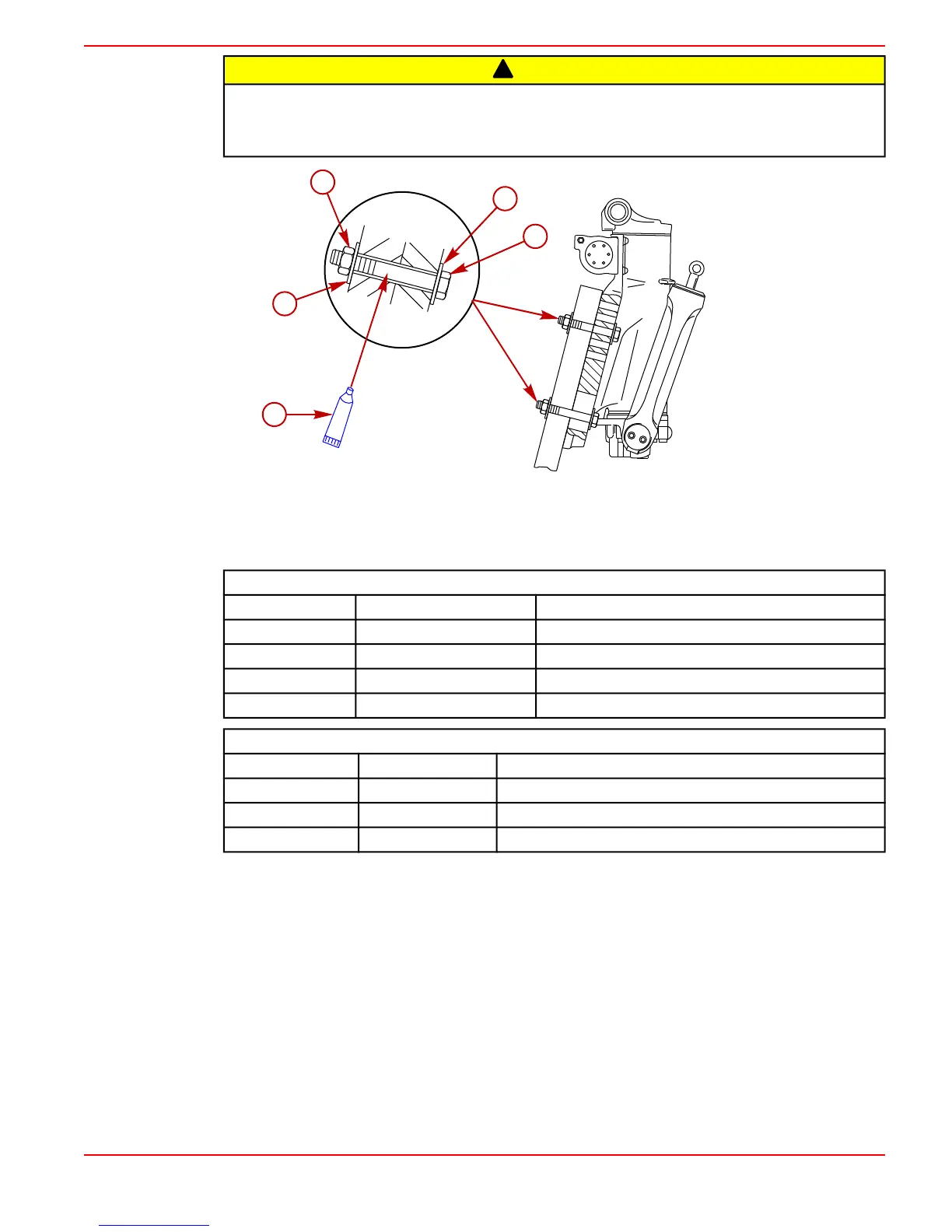

Outboard Transom Mounting Hardware - Supplied with Outboard
Part Number Part Name Description
10-67755003 Transom bolt 1/2 x 20 x 5.50 in. long (3.25 in. thread)
11-826711-17 Nylon insert locknut 1/2 x 20
12-28421 Washer - inner 0.516 in. ID x 1.50 in. OD
12-895062 Washer - outer 0.551 in. ID x 1.06 in. OD
Available Transom Mounting Bolts
Part Number Part Name Description
10-814259 Transom bolt 1/2 x 20 x 4.00 in. long (2.25 in. thread)
10-67755-1 Transom bolt 1/2 x 20 x 4.50 in. long (2.25 in. thread)
10-67755-2 Transom bolt 1/2 x 20 x 6.50 in. long (2.75 in. thread)

Mercury 200 VERADO Specifications

General

Engine Type	4-Stroke
Gear Ratio	1.85:1
Full Throttle RPM Range	5800-6400 RPM
Fuel System	Electronic Fuel Injection (EFI)
Exhaust	Through Prop
Horsepower	200 HP
Fuel Induction System	Electronic Fuel Injection (EFI)
Shaft Length	20", 25"
Starting	Electric
Fuel Type	87 Octane
Cylinder Configuration	Inline-6
Cooling System	Water-cooled with thermostat
