200/225/250/275 VERADO 4-STROKE
90-10238051 Page 29 / 51

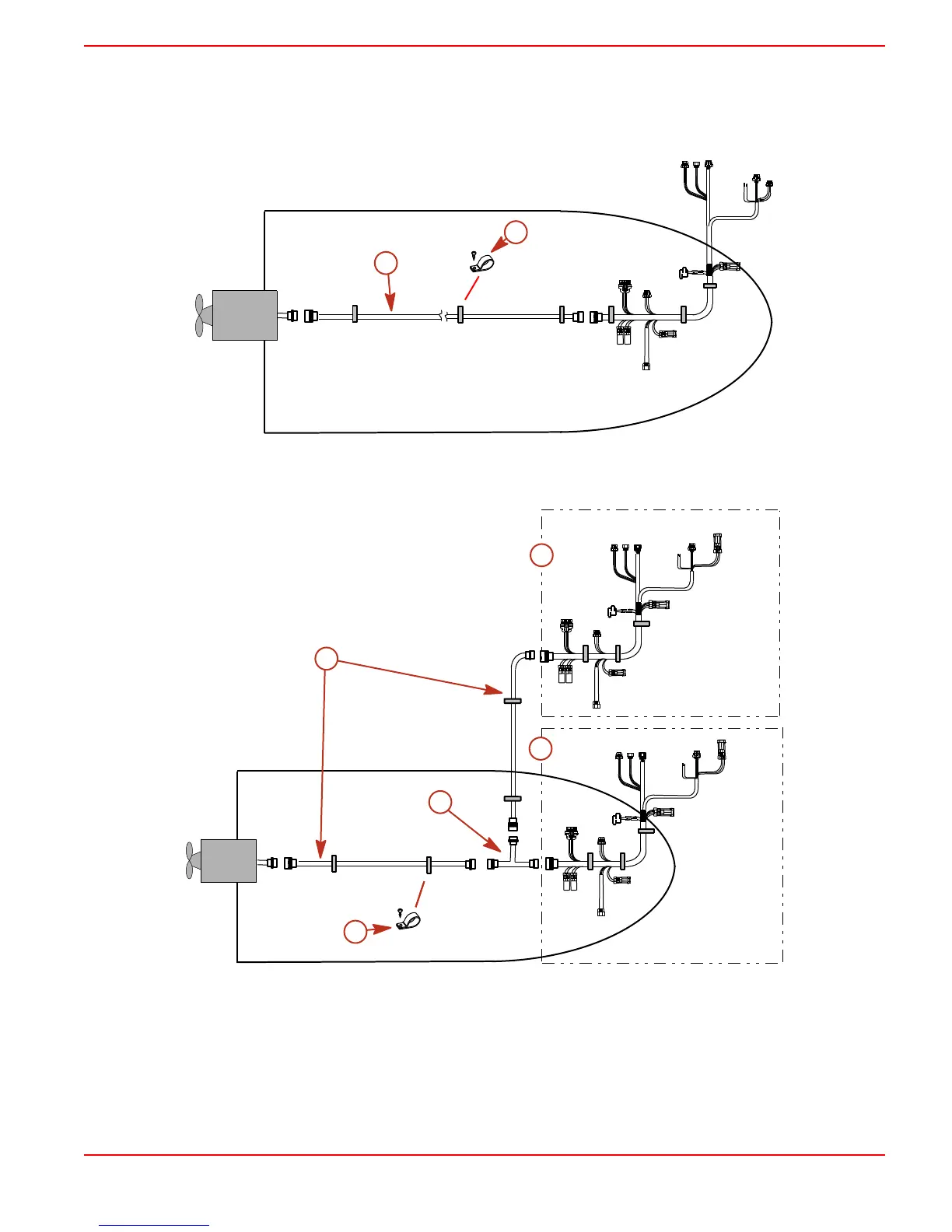

Connecting 14 Pin Data Harness - Single Engine
SINGLE HELM
IMPORTANT: Avoid sharp bends in the harness. Minimum bend radius should be 7.6 cm
(3 in.).
a
b
3619
a - 14 pin data harness b - Clamp or cable tie
DUAL HELM
3682
a
b
c
d
e
a - 14 pin data harness
b - Helm 2 (upper helm)
c - Helm 1 (lower helm)
d - Dual helm adapter (Y harness)
e - Clamp or cable tie
