BRAVO THREE
IMPORTANT: Correct rotation propeller MUST match direction of rotation of propeller
shaft.
1. Slide forward thrust hub onto propeller shaft, with tapered side toward propeller hub.
2. Align splines and place front propeller on propeller shaft.
3. Install front propeller locknut and torque.
Description
Nm lb-in. lb-ft
Front Propeller Locknut 136 100
4. Slide aft thrust hub onto propeller shaft with tapered side toward propeller hub.
5. Align splines and install aft propeller.
6. Install propeller locknut and torque.
77107
f
e
d
c
b
a

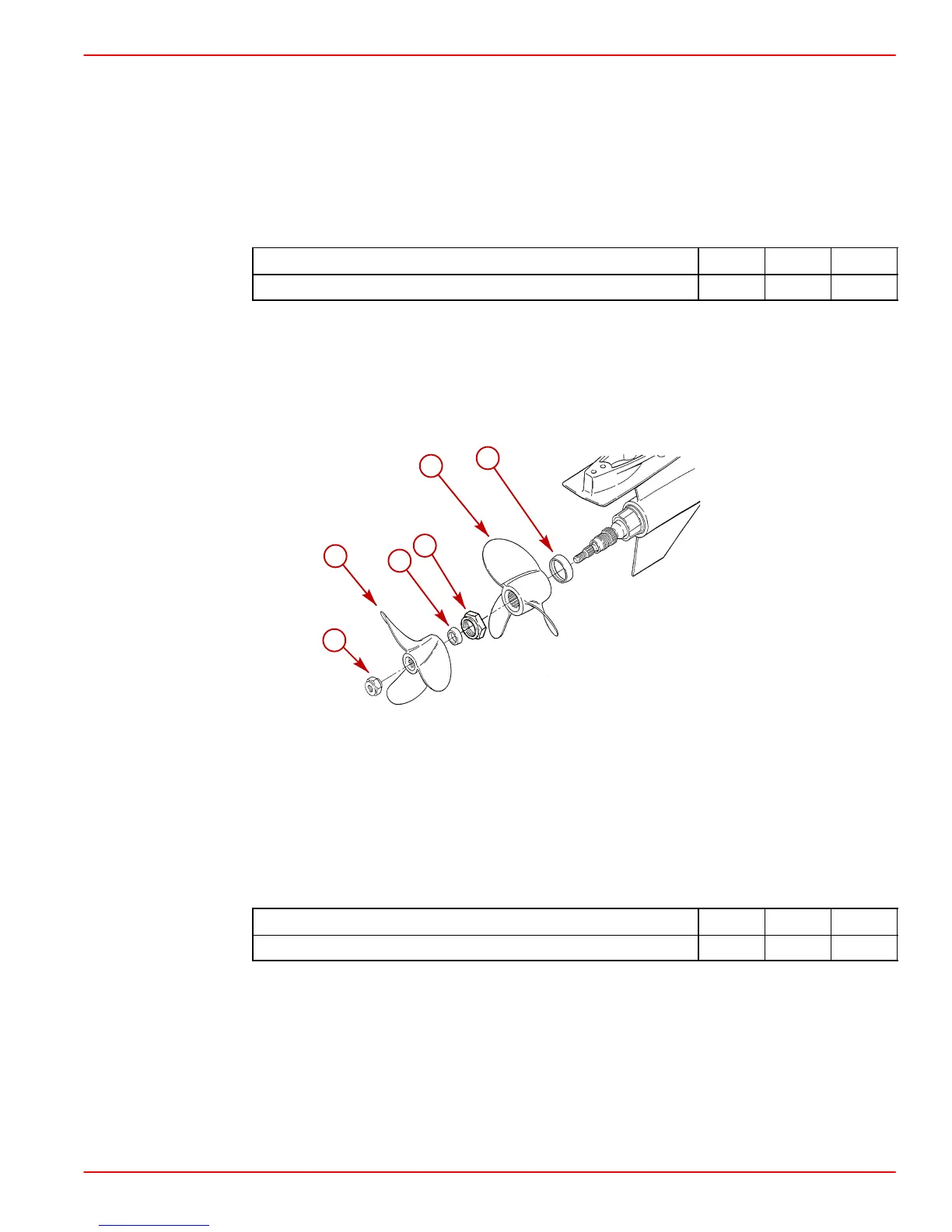

Bravo Three
a-Rear Propeller Locknut
b-Rear Propeller
c-Rear Propeller Thrust Hub
d-Front Propeller Locknut
e-Front Propeller
f-Front Propeller Thrust Hub
Description
Nm lb-in. lb-ft
Rear Propeller Locknut 81 60
