GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 88 of 137 90-860172011
Bravo Models
1. Raise sterndrive to gain access to area between gimbal housing and sterndrive,
immediately atop the transom end of the anti-ventilation plate.

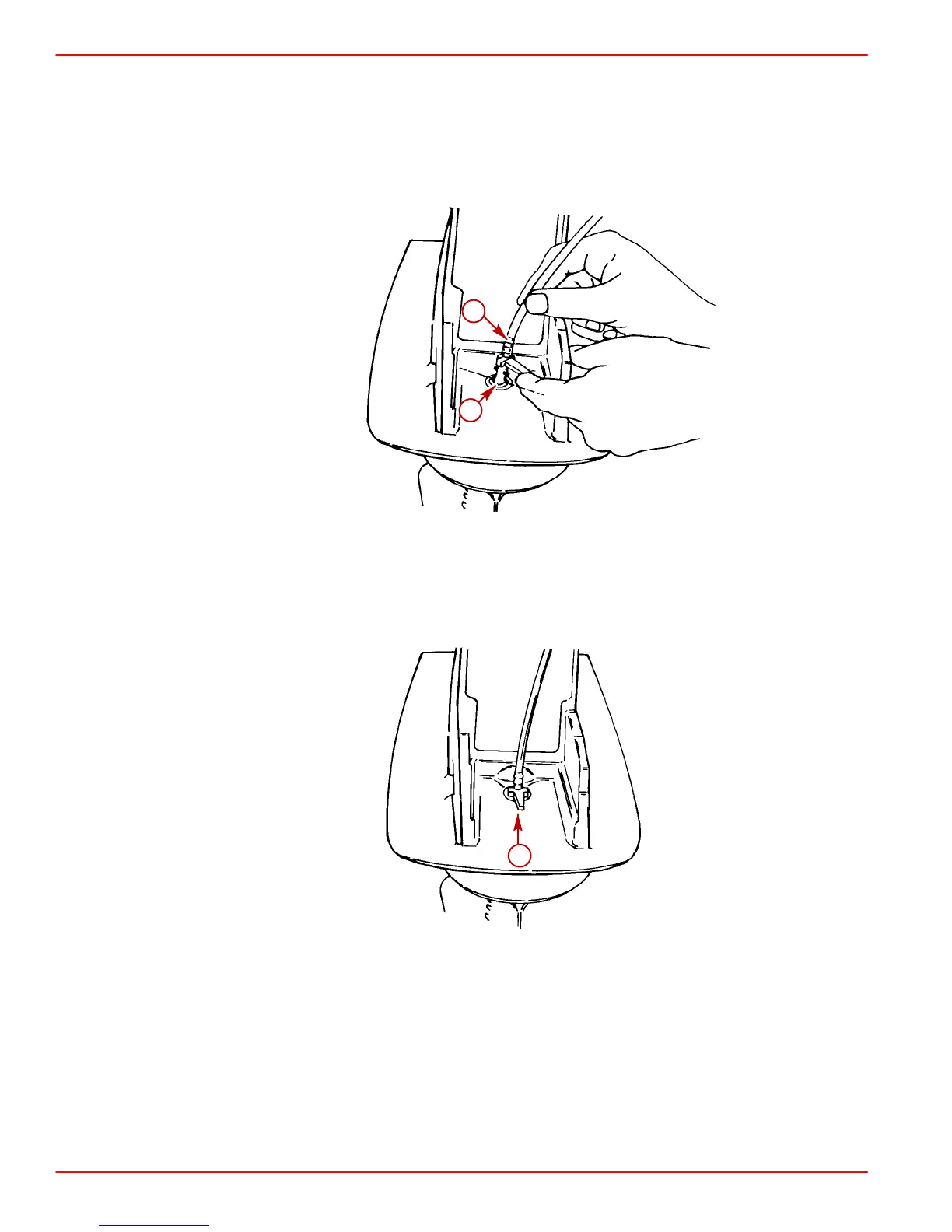

2. Insert speedometer tube fitting into opening on topside of anti-ventilation plate, in
position shown.
22025
a
b
a-Tube Fitting
b-Opening
3. With fitting fully seated, turn handle to left to a tightly seated position, as shown.
22025
a
a-Handle
