GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 100 of 137 90-860172011

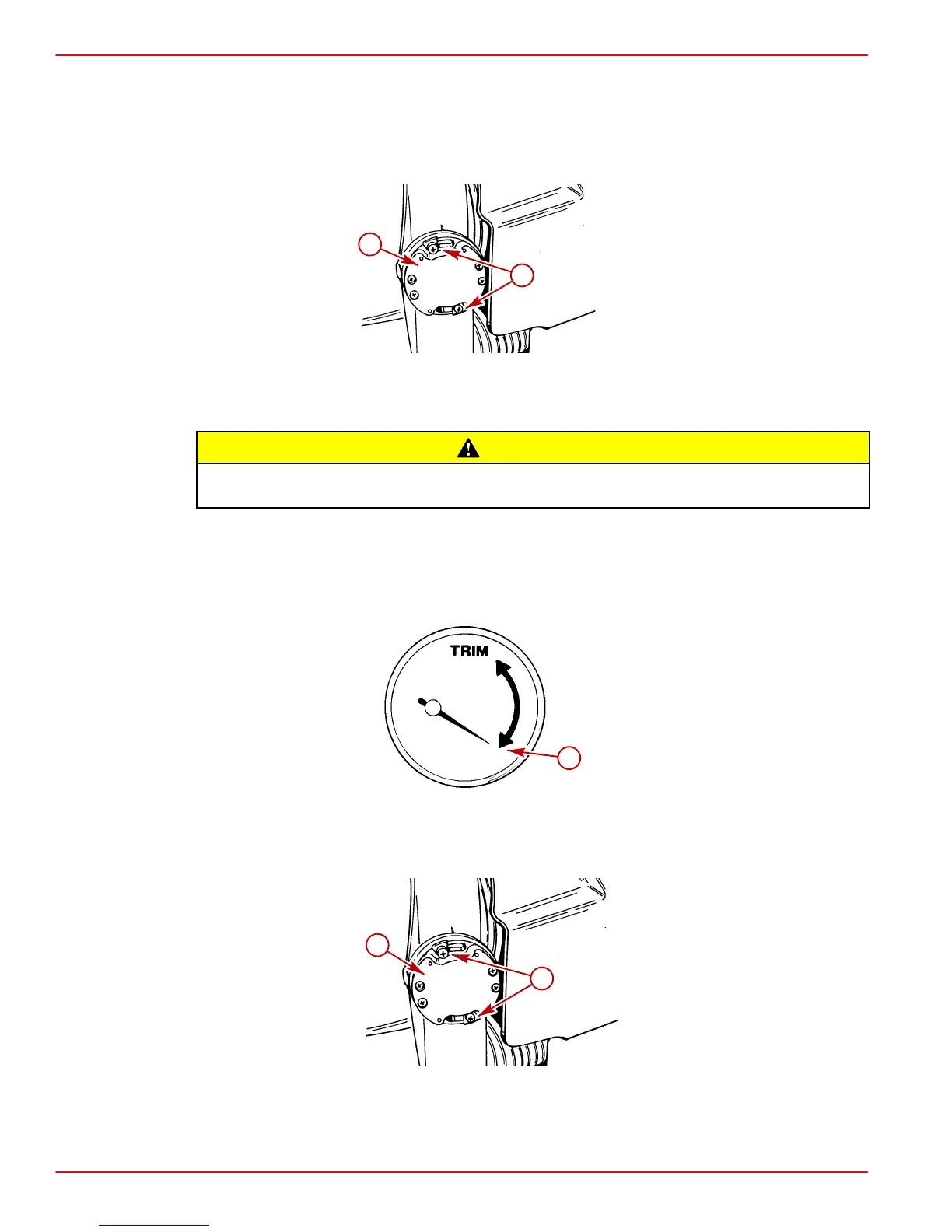

Trim Position Sender Adjustment
ANALOG GAUGES
1. Loosen both trim position sender retaining screws.
71220
a
b
a-Retaining Screws
b-Trim Position Sender
CAUTION
DO NOT start engine in the following step or damage to sterndrive unit and engine
could result from lack of cooling water.
2. Turn ignition key to RUN position.
3. Trim sterndrive unit to the full DOWN/IN position.
4. Rotate trim position sender as required to show full DOWN/IN position on dashboard
instrument as shown.
71671
a
a-Trim Gauge Needle
5. Tighten retaining screws and turn ignition key to the OFF position.
71220
a
b
a-Retaining Screws
b-Trim Position Sender
To Next Page
