Shift Cable Installation
Alpha Models - Drive Unit Installed
IMPORTANT: Shift cable adjustment for a right hand (RH) rotation drive unit is
different than the procedure for adjusting a left hand (LH) rotation drive unit. Be sure
to refer to the appropriate procedure when performing the following steps.
IMPORTANT: Drive unit must be installed.
IMPORTANT: DO NOT run engine.

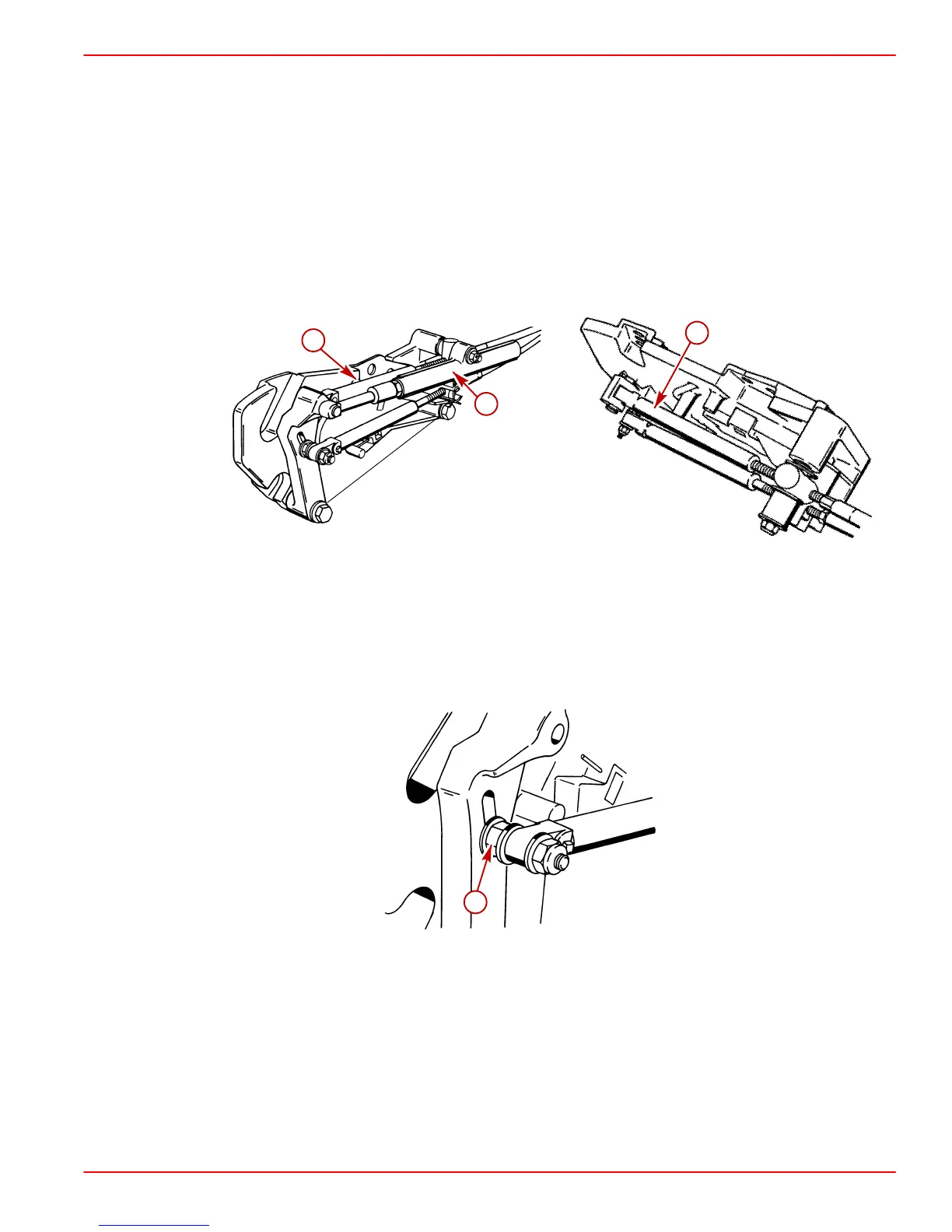

1. Remove remote control shift cable and shift assist assembly (if installed).
75414
50310
b
a
b
With Shift Assist AssemblyWithout Shift Assist Assembly
a-Shift Assist Assembly
b-Remote Control Shift Cable
2. Ensure shift lever adjustable stud is at bottom of slot.
50309
a
a-Adjustable Stud
