GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 90 of 137 90-860172011

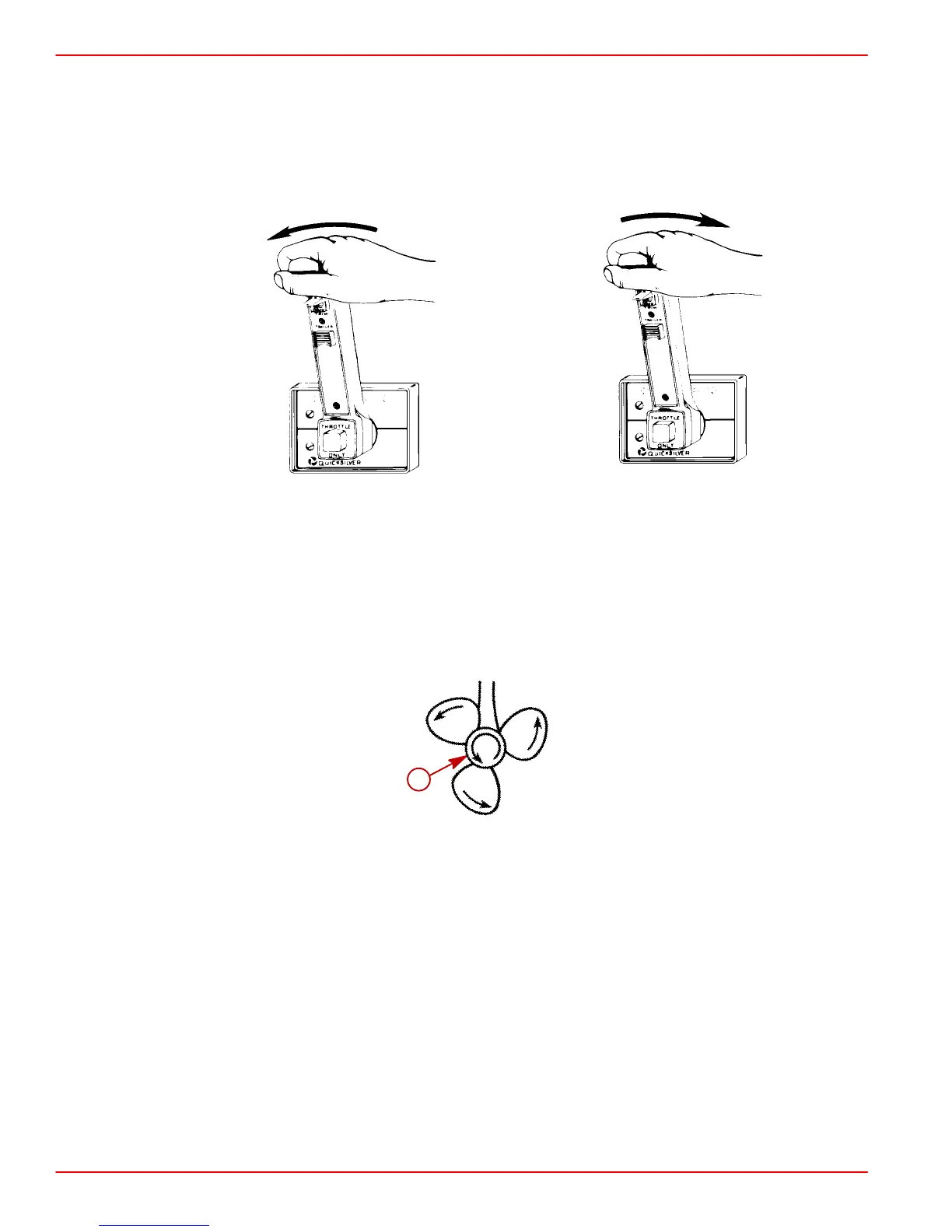

3. Shift remote control as stated in a. or b. following:
a. Right Hand (RH) Rotation Drive Unit - FORWARD gear, past detent, into WOT
position.
b. Left Hand (LH) Rotation Drive Unit - REVERSE gear, past detent, into WOT
position.
(RH)
F
N
R
(LH)
R
4. Place drive unit into gear by pushing in on drive unit shift cable while simultaneously
rotating propeller shaft COUNTERCLOCKWISE until shaft stops. This will ensure full
clutch engagement. Maintain a light pressure on the drive unit shift cable to hold it at
the end of its travel (this removes all slack from the cable).
IMPORTANT: Do not use excessive force when holding pressure on the drive unit
shift cable. Excessive force would be indicated by movement of the shift cutout
switch.
22266
a
a-Propeller Shaft - Rotate COUNTERCLOCKWISE
