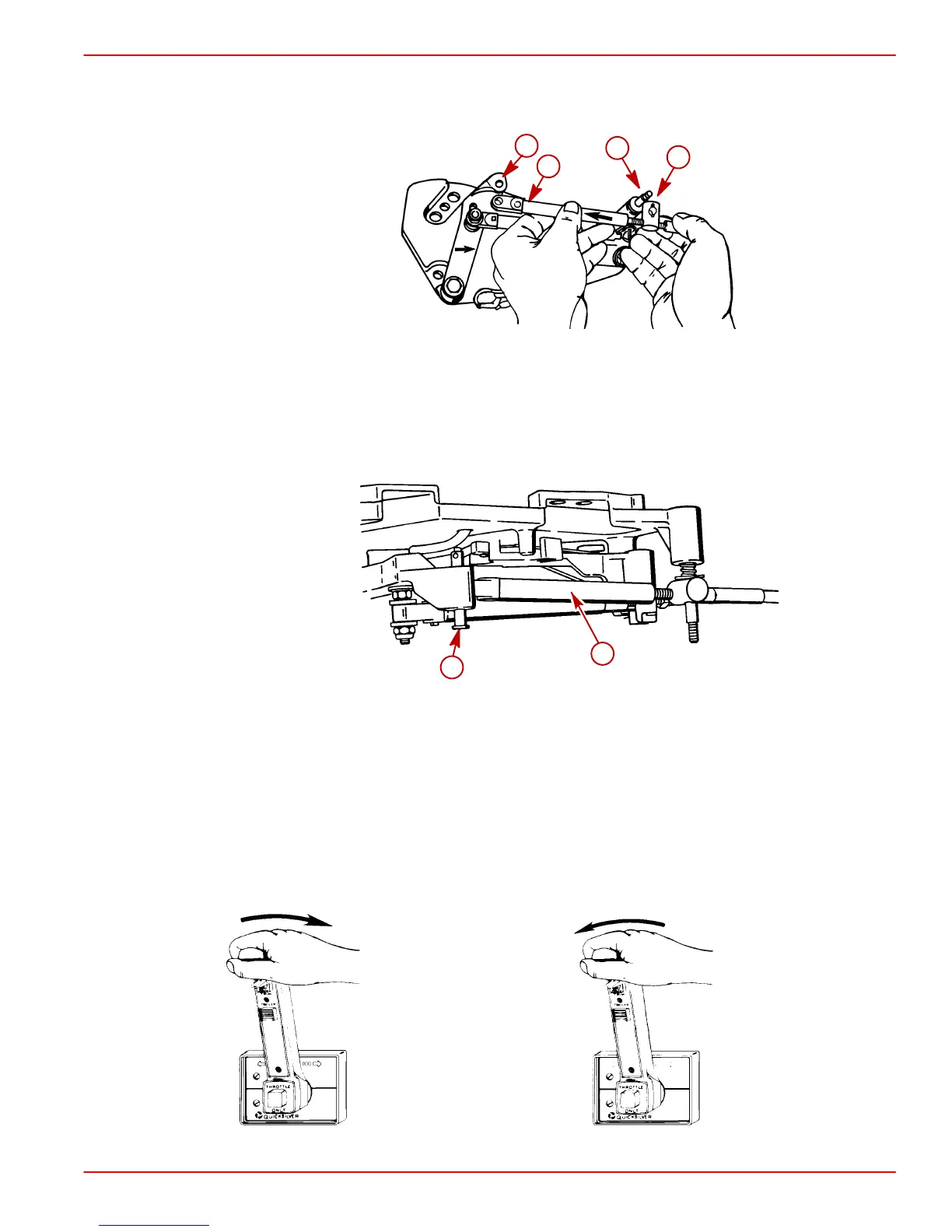

5. Lightly pull on remote control shift cable end guide (to remove slack from remote control
and cable) and adjust brass barrel as necessary to align attaching points with shift lever
clevis pin hole and stud. Be sure to maintain light pressure on drive unit shift cable.
50309
a
b
c
d
a-End Guide
b-Brass Barrel
c-Shift Lever Clevis Pin Hole
d-Stud
6. Temporarily install remote control shift cable on stud and install clevis pin.
50308
b
a
a-Remote Control Shift Cable
b-Clevis Pin
7. Shift remote control as stated in a. or b. following:
a. Right Hand (RH) Rotation Drive Unit - REVERSE gear, past detent, into WOT
position.
b. Left Hand (LH) Rotation Drive Unit - FORWARD gear, past detent, into WOT
position.
(RH)
F
N
R
(LH)
R
To Next Page
