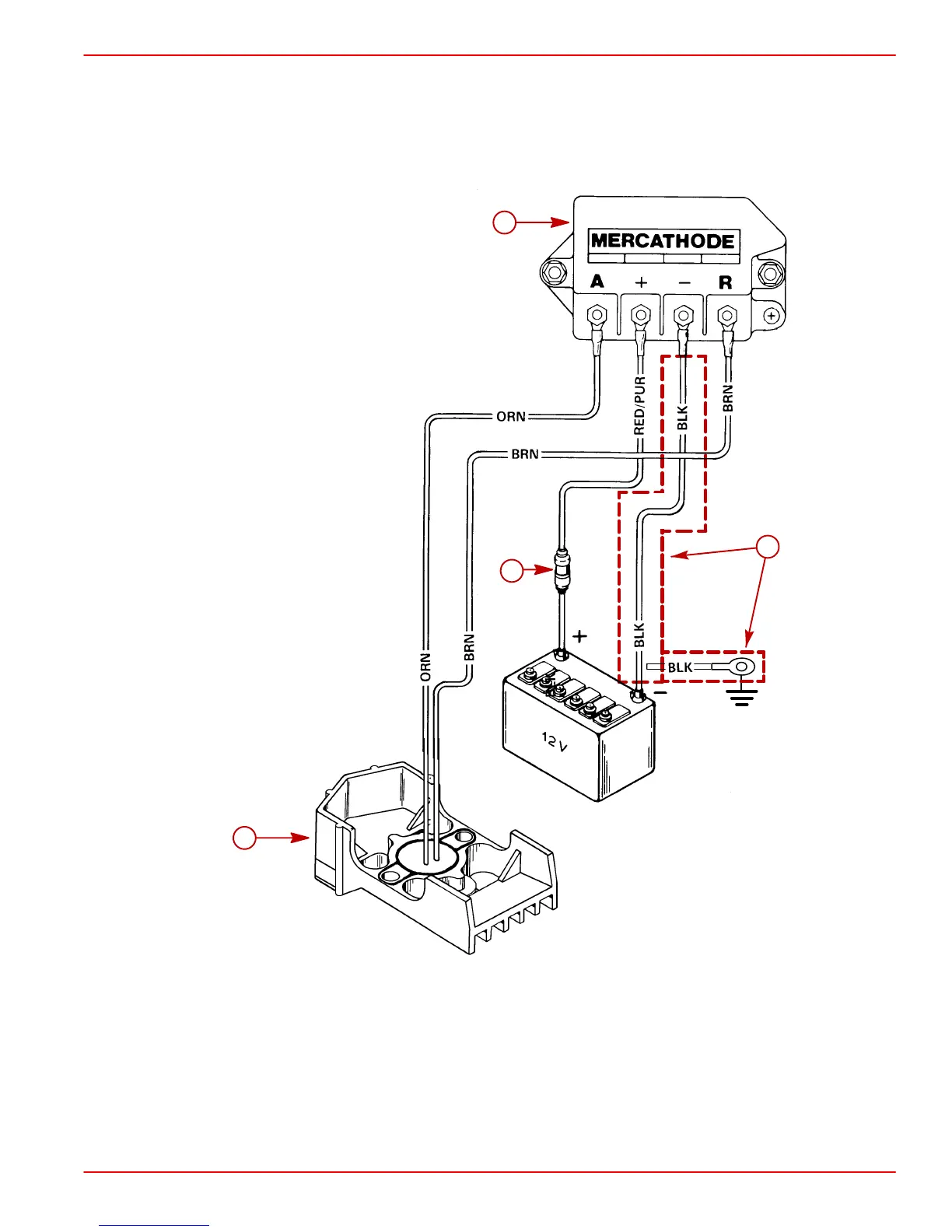

MerCathode System Wiring Diagram
a
b
c
73596
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LT OR LIT = LIGHT
DRK = DARK
d
a-Controller
b-20 Amp Fuse
c-Electrode
d-BLACK Wire - With Engine Harness or Separate
