Mercury Alpha

GASOLINE STERNDRIVE INSTALLATION MANUAL
Page 86 of 137 90-860172011
All Models

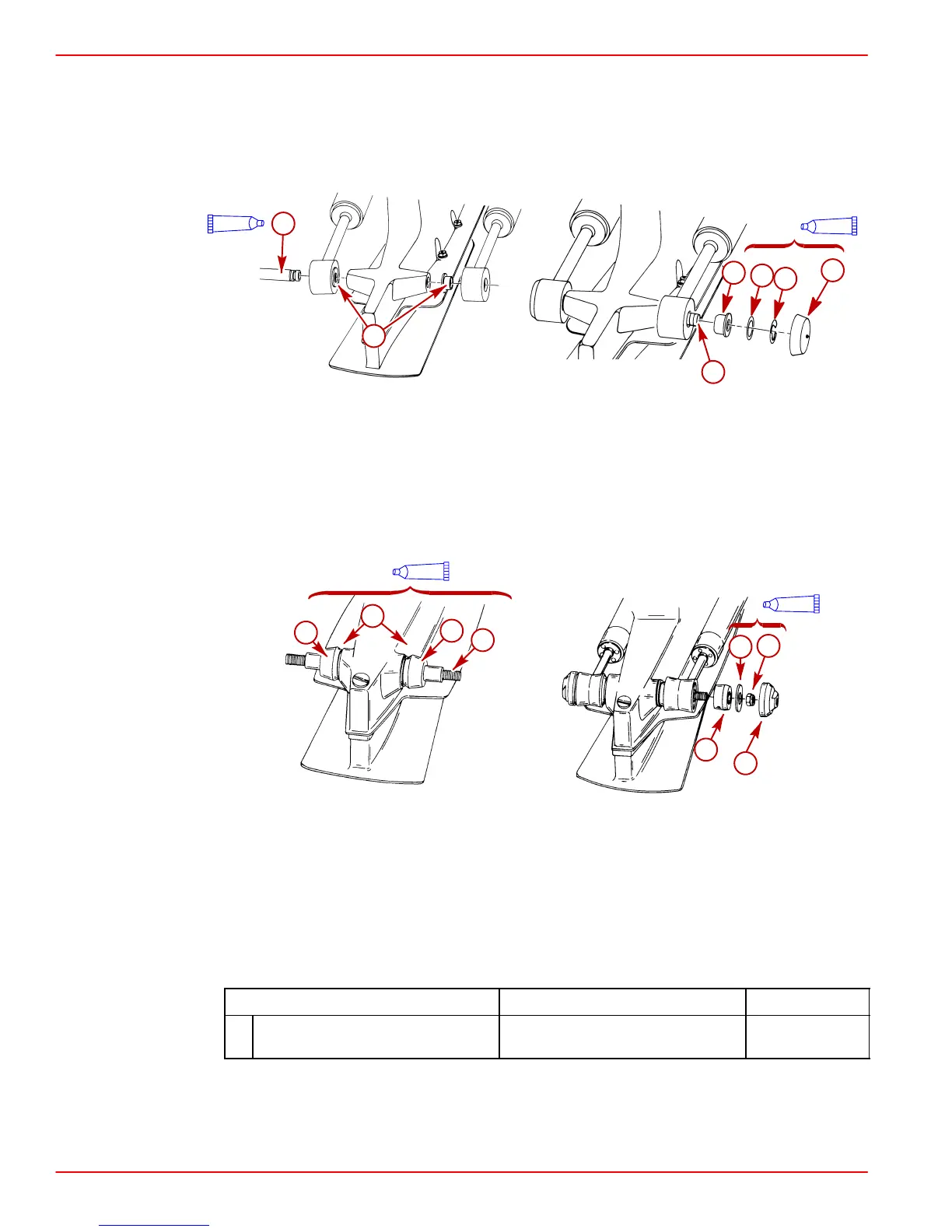

1. Install trim cylinders on aft end of sterndrive unit with hardware as shown.
2. Install plastic caps and tighten hand tight only.
NOTE: Upon installation of hardware apply lubricant to all components except plastic caps.
70026
70027
b
c
d
e
a
b
a
A
A
Alpha Models
a-Aft Anchor Pin
b-Bushings
c-Flat Washers
d-E-ring Clips
e-Plastic Caps
71668
71669
a
c
c
d
e
f
c
b
A
A
Bravo Models
a-Aft Anchor Pin
b-Large l.D. Flat Washers (2)
c-Rubber Bushings (4)
d-Small l.D. Flat Washers (2)
e-Locknuts (2)
f-Plastic Caps (2)
Description
Where Used Part Number
A
2-4-C Marine Lubricant With
Teflon
Trim Cylinder Hardware 92-825407A3
3. Position the drive unit serial number decal.
