Shift Cable Installation
Alpha Models - Drive Unit Not Installed
We recommend the use of a Quicksilver remote control and cable. Refer to Mercury
Precision Parts / Quicksilver Accessories Guide for selection. However, if a control other
than Quicksilver is to be used, control must provide a shift cable travel (at the shift plate end)
of 2-7/8 in. (73 mm) to 3-1/8 in. (80 mm) with a 15-20 lb. (6.8-9 kg) load applied to the cable
end guide.
NOTE: On engines with Alpha drives, the measurement indicated above can be taken by
installing the remote control shift cable and using the shift assist assembly (provided) to
place the proper load on the shift cable.
1. Place a mark on the tube against the edge of the cable end guide.
50368
a
a
d
e
b
c
a

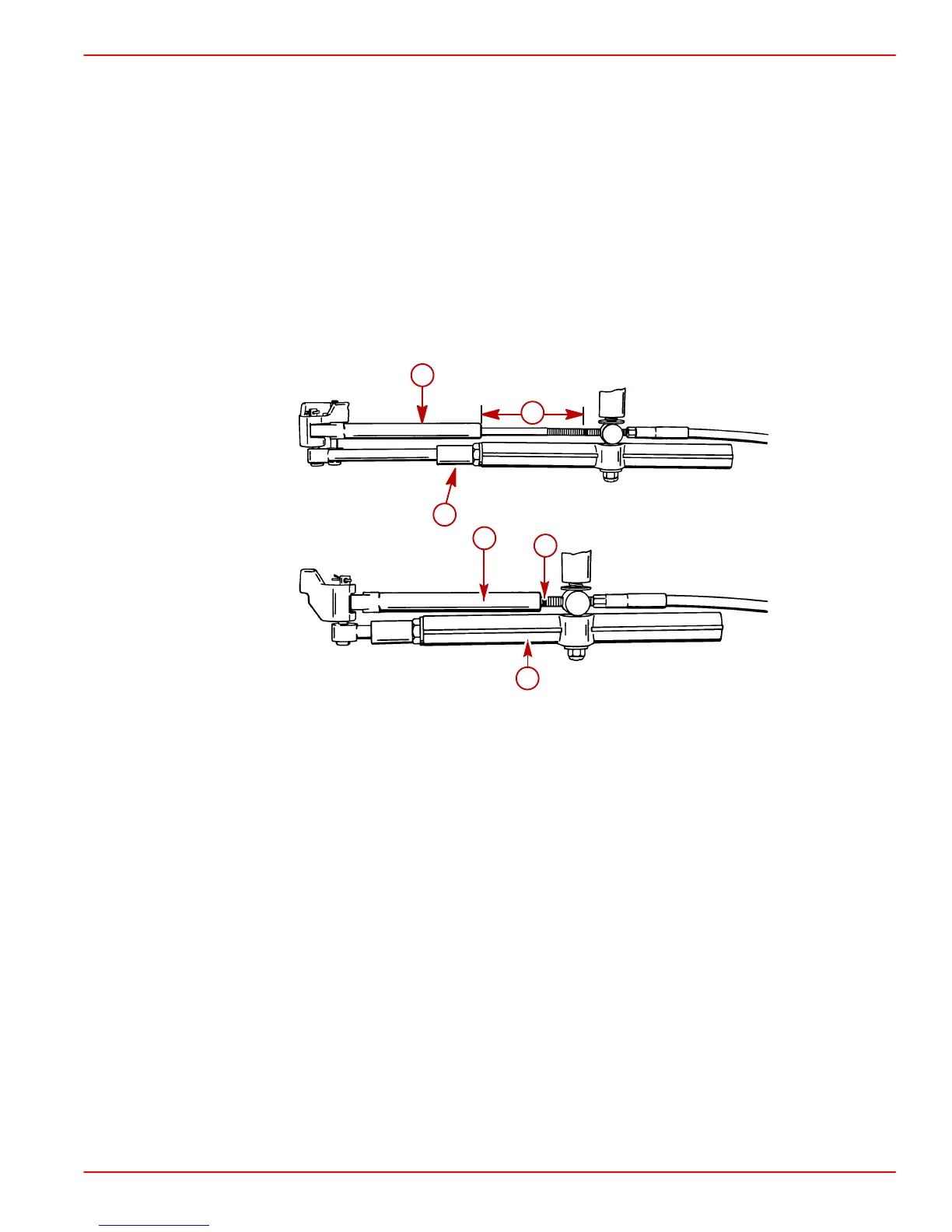

a-Shift Assist Assembly
b-Remote Control Shift Cable - In FORWARD Gear Position
c-Edge Of Cable End Guide
d-Remote Control Shift Cable - In REVERSE Gear Position
e-Measurement Taken From Mark To Edge Of Cable End Guide:
2-7/8 in. (73 mm) to 3-1/8 in. (80 mm)
