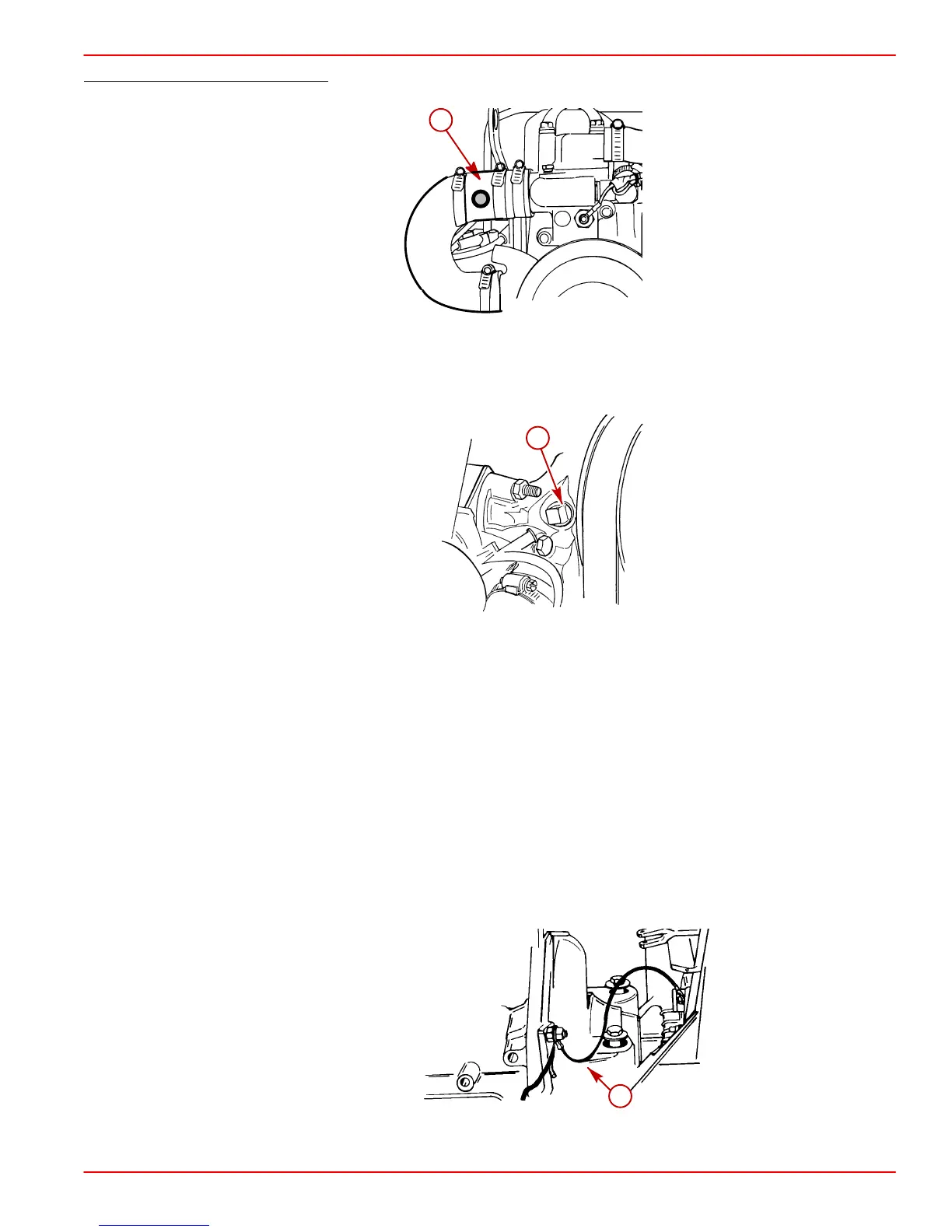

RETURN HOSE CONNECTION
73572
a
Typical 3.0L
a-Location For Hot Water Return (T-Fitting Installed in Water Circulating Pump
Hose)
75480
a
Seawater or Closed Cooling System
a-Location For Hot Water Return
Electrical Connections
IMPORTANT: When routing all wire harnesses and hoses, be sure they are routed and
secured to avoid coming in contact with hot spots on engine and to avoid contact
with moving parts.
Installing Continuity Wire
1. Connect continuity circuit wire from engine to transom assembly.
IMPORTANT: Do not attach any accessory ground (–) wires to transom plate ground
point. Accessory ground wires can only be attached to ground stud on engine.
71651
a
a-Continuity Wire
To Next Page
