GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 23 of 137

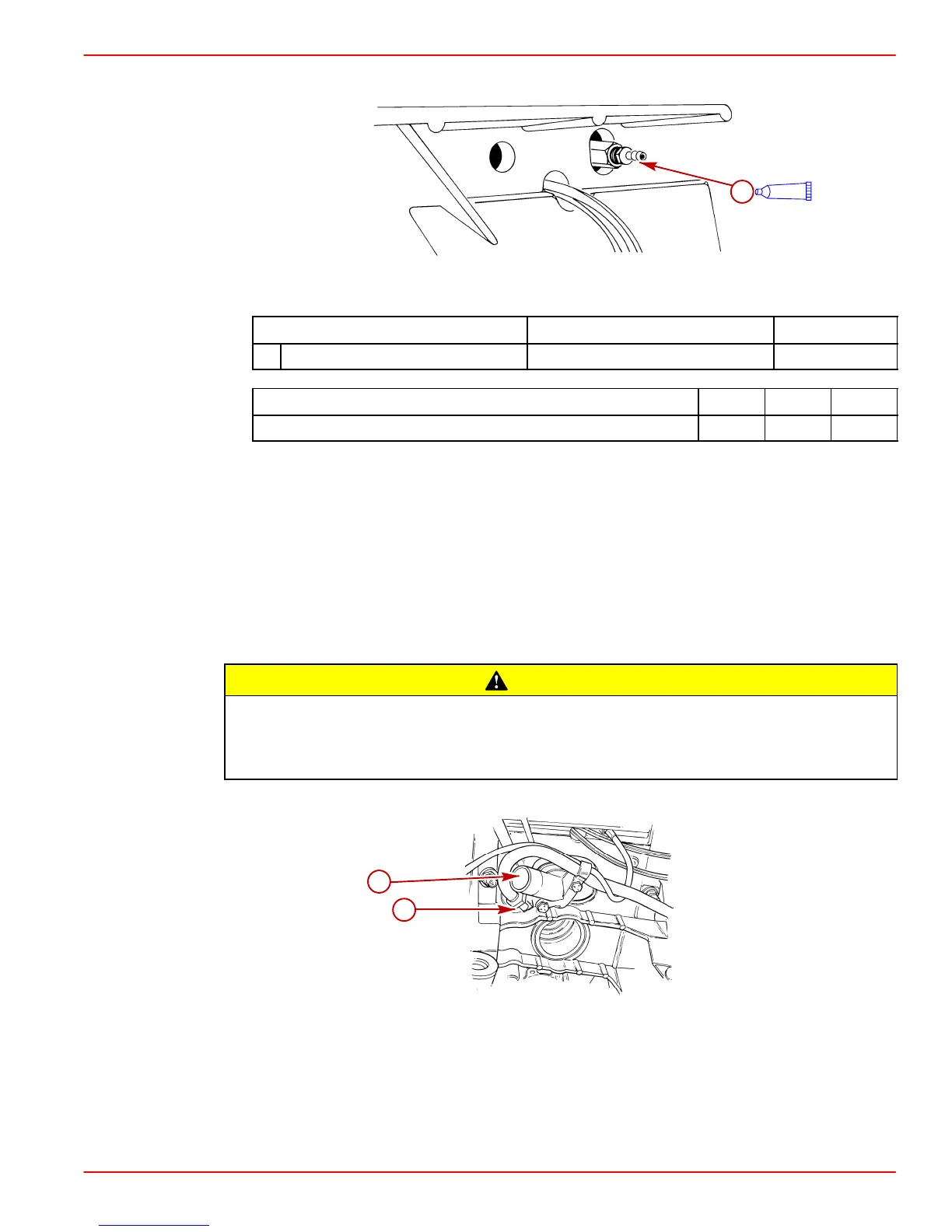

2. Apply sealant to threads of barb fitting. Install and torque the barb fitting.
70015
a
A
a-Barb Fitting
Description
Where Used Part Number
A Loctite 592 Speedometer Barb Fitting Obtain Locally
Description Nm lb-in. lb-ft
Barb Fitting 1.5 13
3. Connect a 5/32 in. (4 mm) speedometer hose (not provided) hose from speedometer
to barb fitting. Secure hose with cable tie.
4. Secure the hose to the transom with the hose clip and screw that are provided in the
parts bag.
NOTE: The hose must not come into contact with the steering system components or the
engine coupler and drive shaft.
Fluid Connections
1. Connect the gear lube monitor hose to the quick release 90 degree fitting.
CAUTION
Avoid sterndrive unit damage. Quick release button on gear lube monitor 90 degree
hose fitting may not lock on gimbal housing if touching or depressed by water inlet
fitting or block-off plate, if equipped. Failure to do so could result in a loose 90
degree fitting causing a loss of gear lube and damage to drive unit.
2. Connect 90 degree fitting to the gimbal housing.
77916
a
b
a-Water Inlet Fitting
b-90 Degree Fitting
To Next Page
