GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 21 of 137

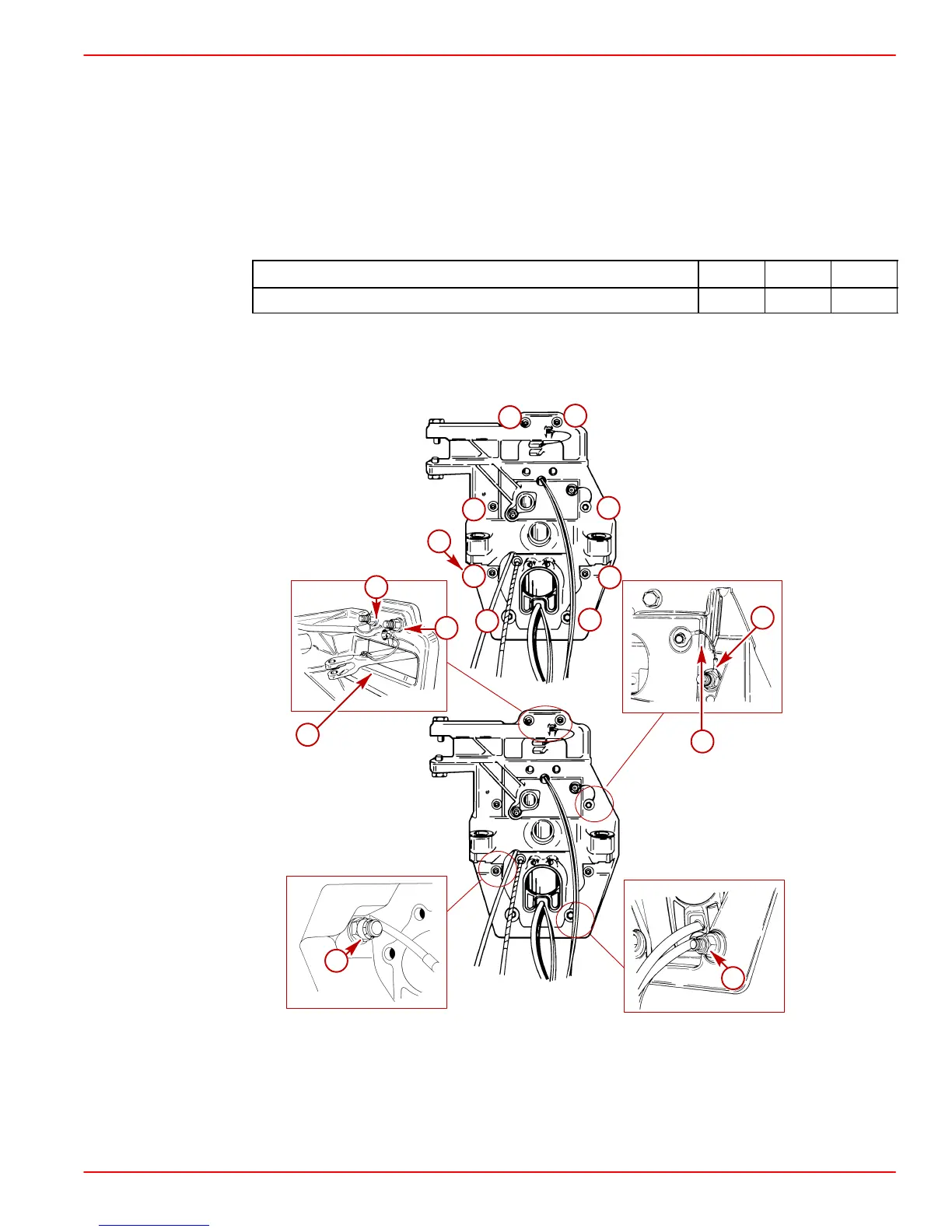

Installing Inner Transom Plate
1. Insert wires, hoses and shift cable through appropriate openings in inner transom plate.
2. Position gimbal housing on transom and hold in place.
IMPORTANT: Tighten the transom assembly fasteners using an X-pattern torque
sequence, starting from the middle fasteners. Tighten in small increments and go
around the pattern several times until the proper torque is achieved.
3. Secure transom assembly with hardware as shown. Torque the hardware.
Description
Nm lb-in. lb-ft
Transom Assembly Hardware 31 23
4. Attach continuity wires.
IMPORTANT: Steering lever continuity circuit wire must be positioned as shown to
avoid stressing wire when steering lever moves.
71626
71628
70005
71627
1
2
3
4
5
6
7
8
71629
a
b
c
a
a
c
a
a
a-Locknuts And Flat Washers (8)
b-Torque Sequence
c-Continuity Wire
