GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 57 of 137

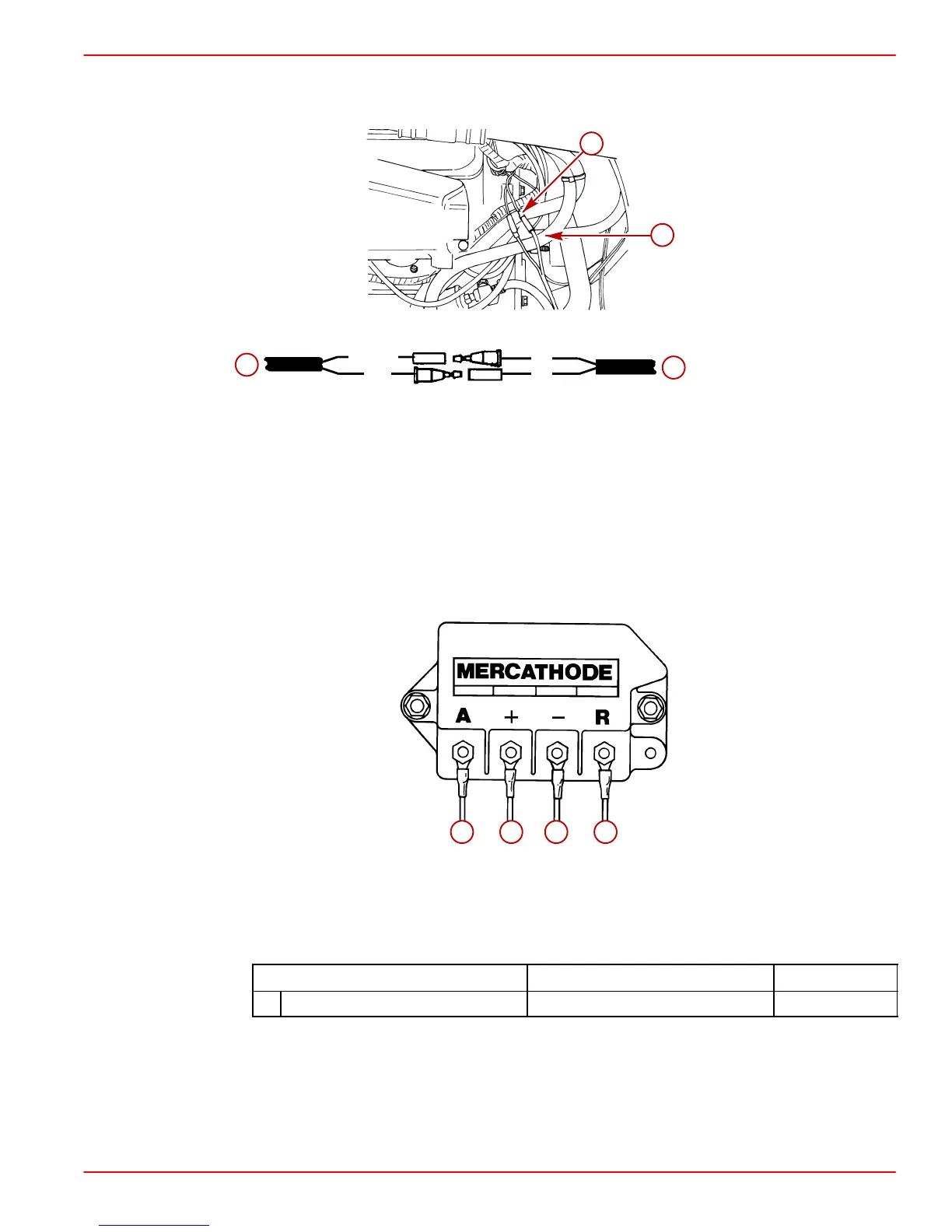

Trim Position Sender Connections
1. Connect trim position sender wires (from transom assembly) to engine harness.
BLK
ORG/WHT
BLK
BLK
74029
a
b
a
b
a-Engine Harness Bullet Connector
b-Transom Assembly Bullet Connector
MerCathode Connections (If Equipped)
1. Connect wires to MerCathode controller assembly as shown. Apply a thin coat of Liquid
Neoprene to all connections.
IMPORTANT: Opposite end of RED/PURPLE wire must be connected directly to
battery positive (+) terminal. DO NOT connect it to a switched positive (+) circuit.
MerCathode system must function continuously for proper corrosion protection.
22232
a
b
c
d
a-ORANGE Lead - From Electrode On Transom Assembly
b-RED/PURPLE Wire - To Positive (+) Battery Terminal
c-BLACK Wire - From Engine Harness
d-BROWN Wire - From Electrode On Transom Assembly
Description Where Used Part Number
A Liquid Neoprene MerCathode Connections 92-25711-2
