GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 135 of 137

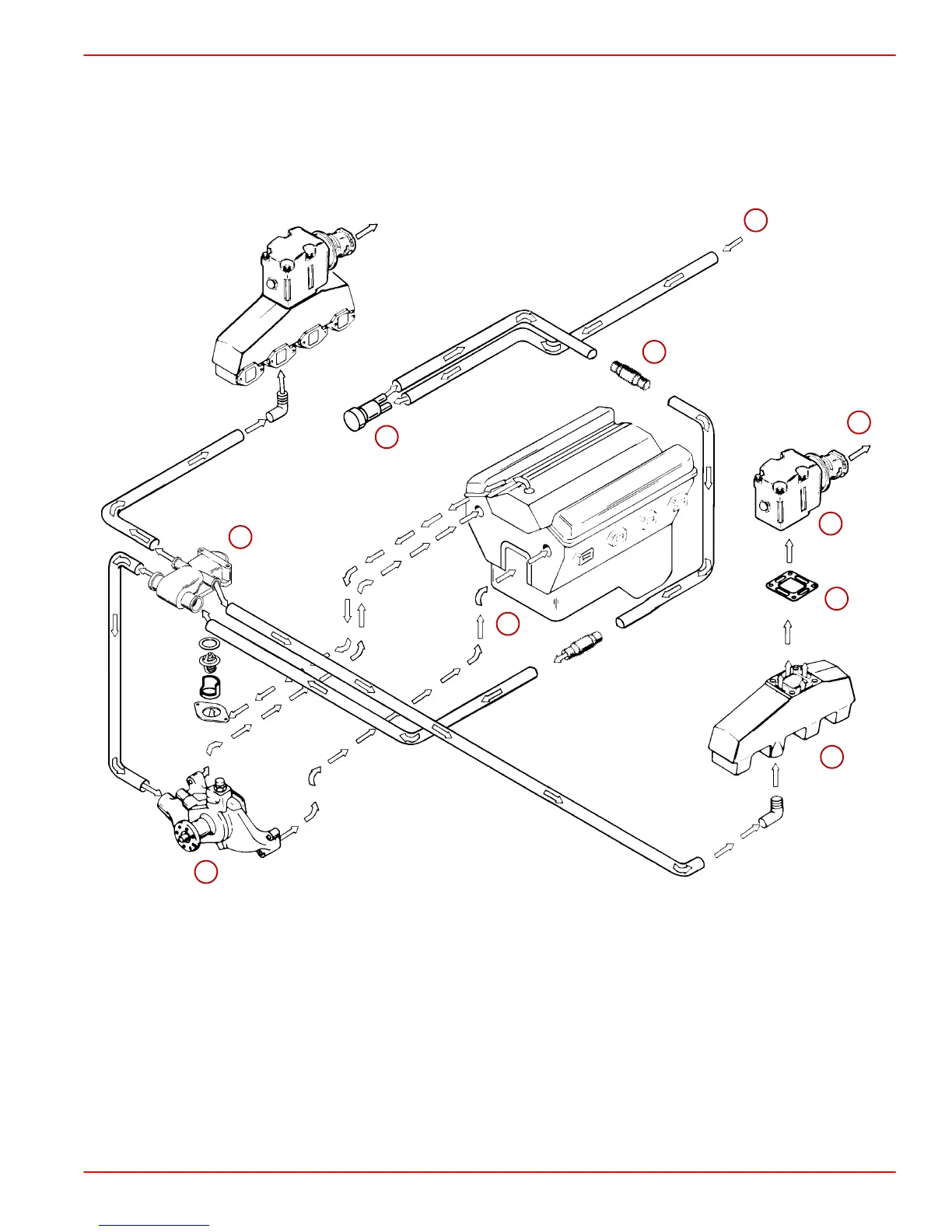

V8 Engines - Seawater Cooled
262 CID, 305 CID AND 350 CID ENGINES
NOTE: Certain components in the following diagram may look different than on your particu-
lar power package, but the water flow paths remain similar on all engines.
77992
9
10
1
2
3
4
5
6
7
8
1-Seawater Intake (From Sterndrive)
2-Seawater Pump (Bravo Models)
3-Power Steering Cooler, If Equipped
4-Thermostat Housing and Cover Assembly
5-Engine Water Circulating Pump
6-Engine Block and Cylinder Head Assembly
7-Exhaust Manifold, Typical
8-Restrictor Gasket
9-Exhaust Elbow Assembly, Typical
10 - Water Flow Overboard
