GASOLINE STERNDRIVE INSTALLATION MANUAL
90-860172011 Page 85 of 137
IMPORTANT: On Bravo One, Two and Three Models, the Trim-In Limit Insert must be
properly positioned before installing the trim cylinder anchor pin in the following
steps.

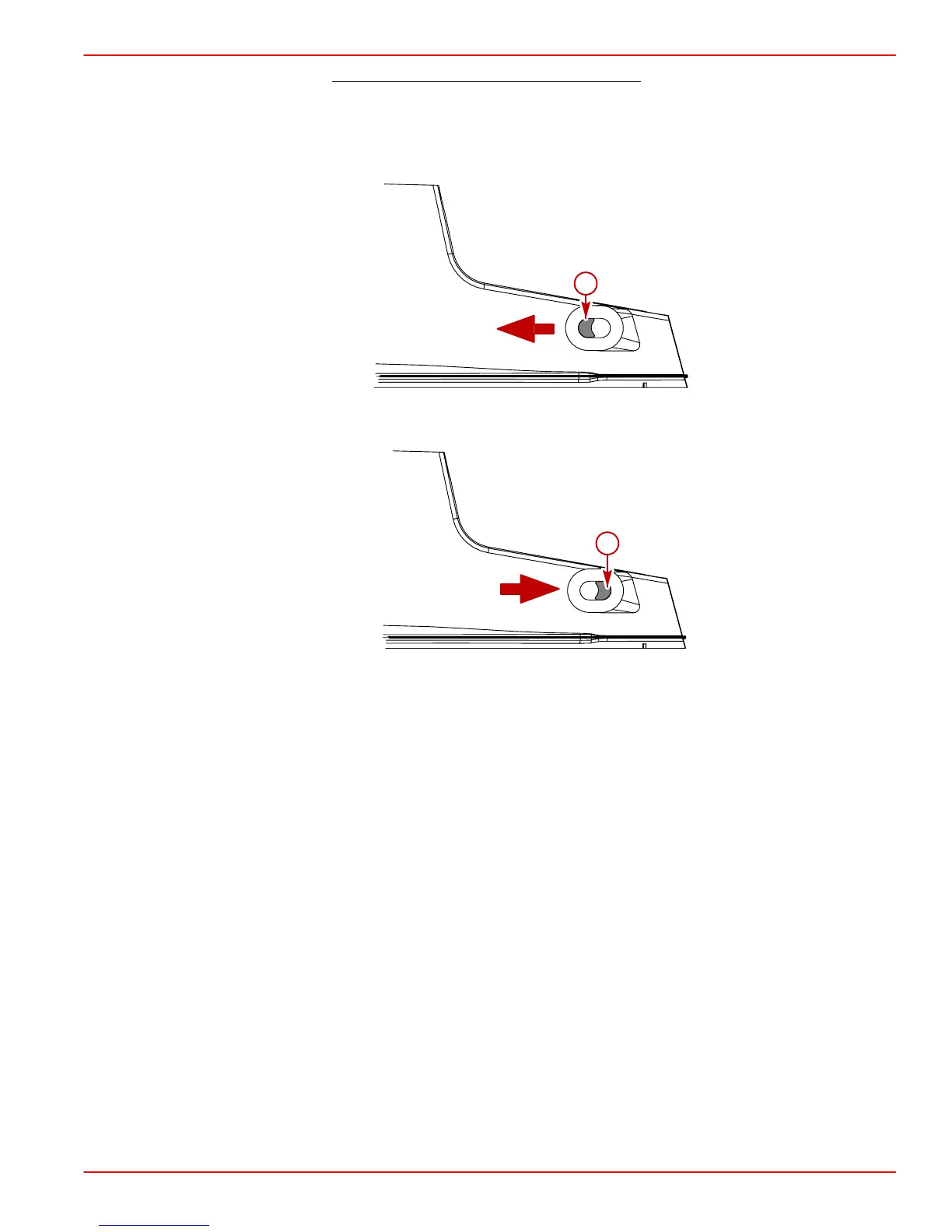

6. Ensure that the Trim-In Limit Insert is positioned as shown for the appropriate Bravo
model.
75157
a
Bravo One and Two (Positioned Forward)
75158
a
Bravo Three (Positioned Aft)
a-Trim-In Limit Insert
IMPORTANT: The position of the Trim-In Limit Insert on the Bravo Three sterndrive
unit should only be changed after the boat has been properly tested. Refer to Trim-In
Limit Statement.
IMPORTANT: To aid in installing rubber bushings, use a water and soap solution. DO
NOT use oil or grease.
