Section 5 - Maintenance
Page 94 90-899883295 JUNE 2008
!
CAUTION
Failure to release pressure from the fuel system will result in fuel spraying out, which can
cause a fire or explosion. Allow the engine to cool completely and release all fuel pressure
before servicing any part of the fuel system. Always protect eyes and skin from
pressurized fuel and vapors.
GEN III Models
d
a
b
c
e
f
g
h
8837

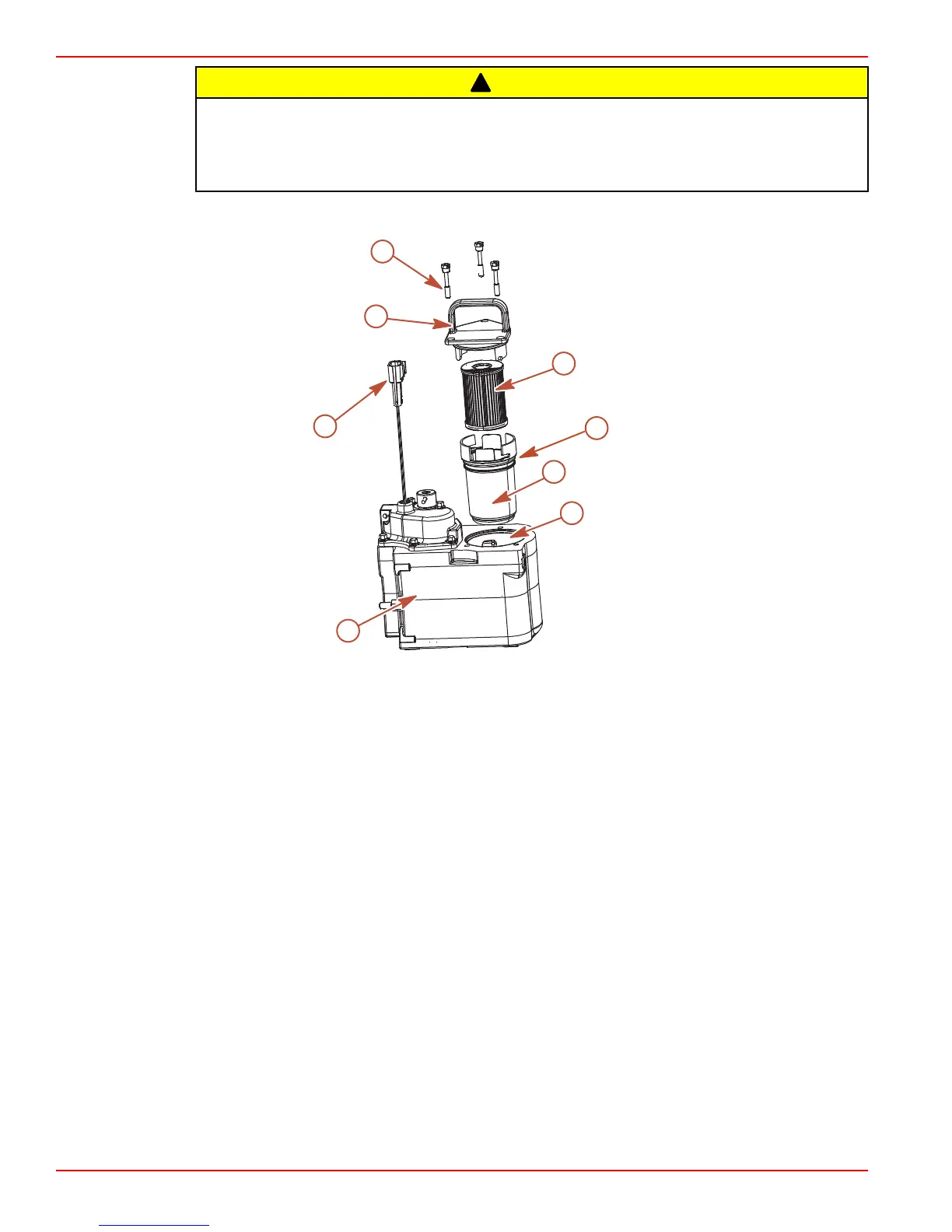

a - Cool Fuel Module
b - Cool Fuel Module harness
c - Filter cap
d - Filter assembly retaining screw
e - Fuel filter element
f - Filter cup
g - Cool Fuel Module filter reservoir
h - O‑ring
REMOVAL
1. Allow the engine to cool down.
NOTE: Mercury MerCruiser recommends that the engine be shut off for 12 hours prior to
filter removal.
2. Close fuel supply valve, if equipped.
3. Disconnect the Cool Fuel Module harness from the engine wiring harness.
4. Turn the key switch to the start position and allow the starter to operate for 5 seconds.
5. Turn key switch to off position.
6. Loosen each filter assembly retaining screw until the screw is disengaged from the Cool
Fuel Module. Do not remove the filter assembly retaining screws from the filter cap.
7. Unseat the filter assembly by grasping the filter assembly handle and pulling upward.
Do not remove the filter assembly from the Cool Fuel Module at this time.
8. Allow any fuel that may be in the filter assembly to drain out through the bottom of the
filter assembly and into the Cool Fuel Module filter reservoir.
