Section 3 - On the Water
90-899883295 JUNE 2008 Page 49
DOCK
Dock mode reduces the RPM throughout the range by 50%. Dock mode also reduces
available power when the joystick is enabled, allowing finer control of engine power in close
quarter situations.

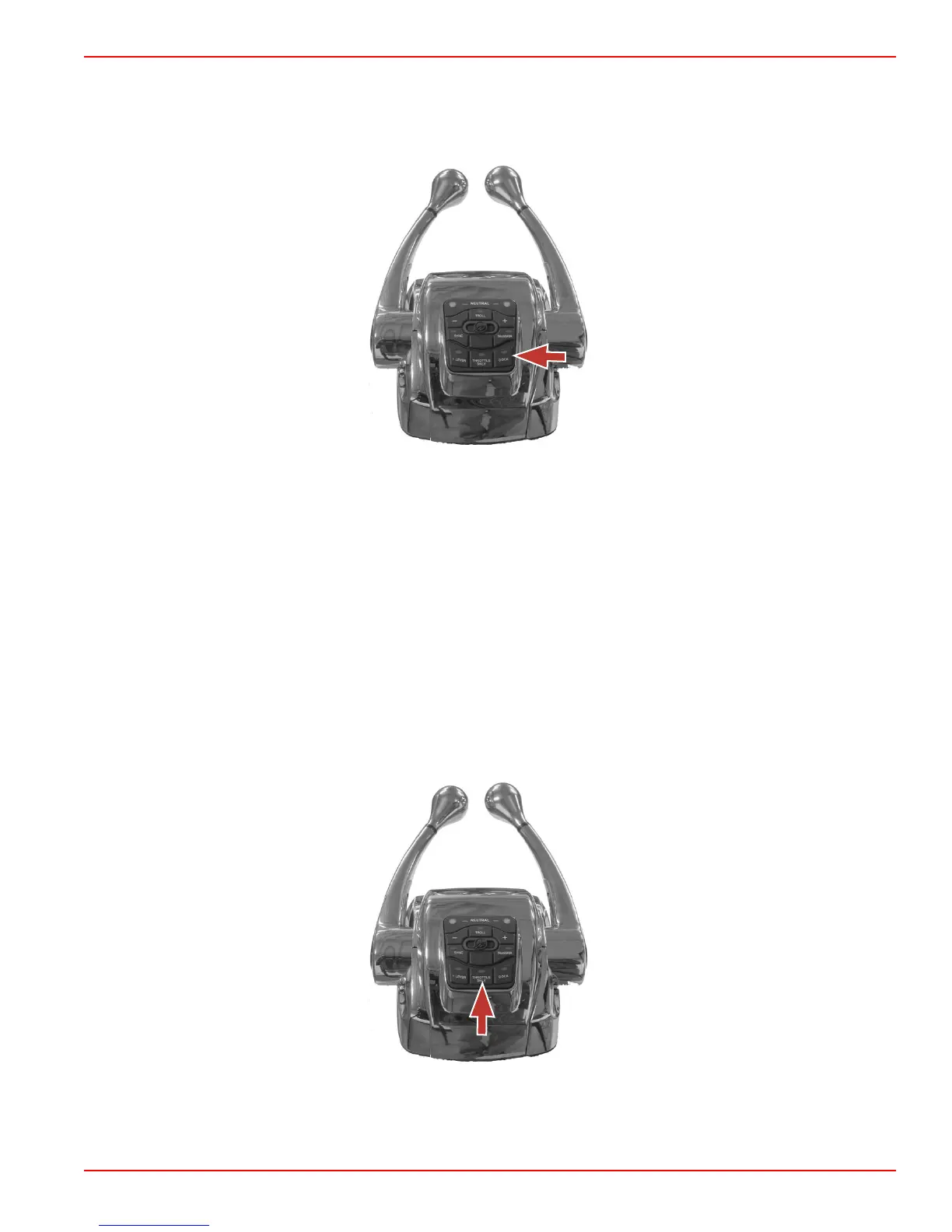

31464
"DOCK" button
To engage Dock mode:
1. Place both ERC levers in neutral.
2. Press the "DOCK" button located on the DTS Trackpad attached to the ERC levers.
3. The "DOCK" button light turns on.
4. Place either ERC lever into gear.
5. The engines raise the RPM at a proportionally lower RPM for the ERC lever position,
and with half the usually available power.
To disengage Dock mode:
NOTE: Dock only disengages with the levers in a detent.
1. Bring both ERC levers to any detent.
2. Press the "DOCK" button. The "DOCK" button light turns off.
THROTTLE ONLY
31465
"THROTTLE ONLY" button
To engage Throttle Only mode:
1. Place both ERC levers in neutral.
