Mercury Optimax 135 Service Manual

WIRING DIAGRAMS
90-855347R1 JANUARY 1999 Page 2D-13

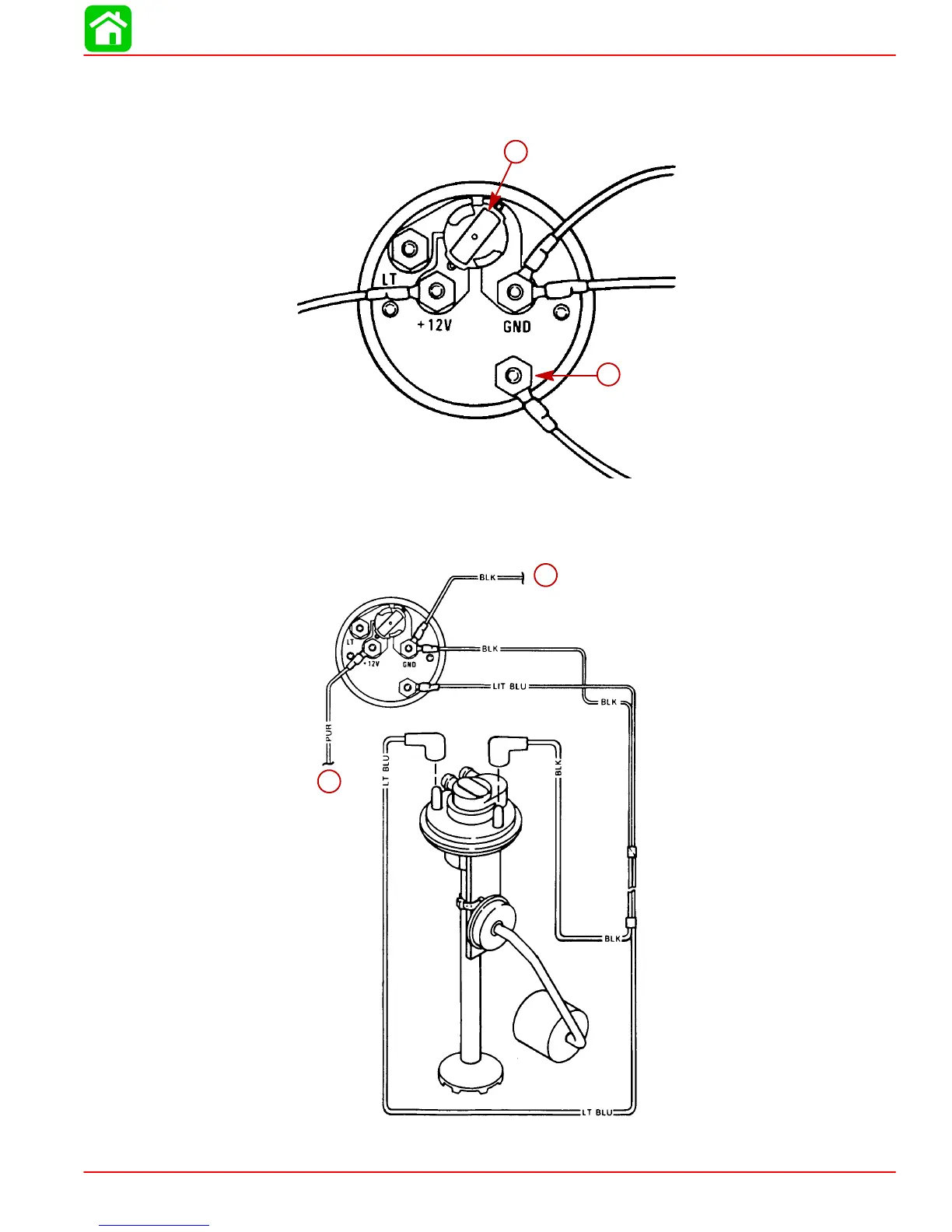

LIGHT BULB POSITION B
Use this position when instrument lighting is wired directly to the ignition key switch. (In-
strument lights are on when ignition key switch is turned on.)
51112
a
b
a-Position Light Bulb to the Unswitched Position
b-Sender
SENDER WIRING
51108
a
b
a
b
a-Connect to +12 Volt
b-Connect to NEGATIVE (–) Ground

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
