POWER TRIM
Page 5B-18 90-855347R1 JANUARY 1999
Power Trim Assembly Removal and Installation
Removal

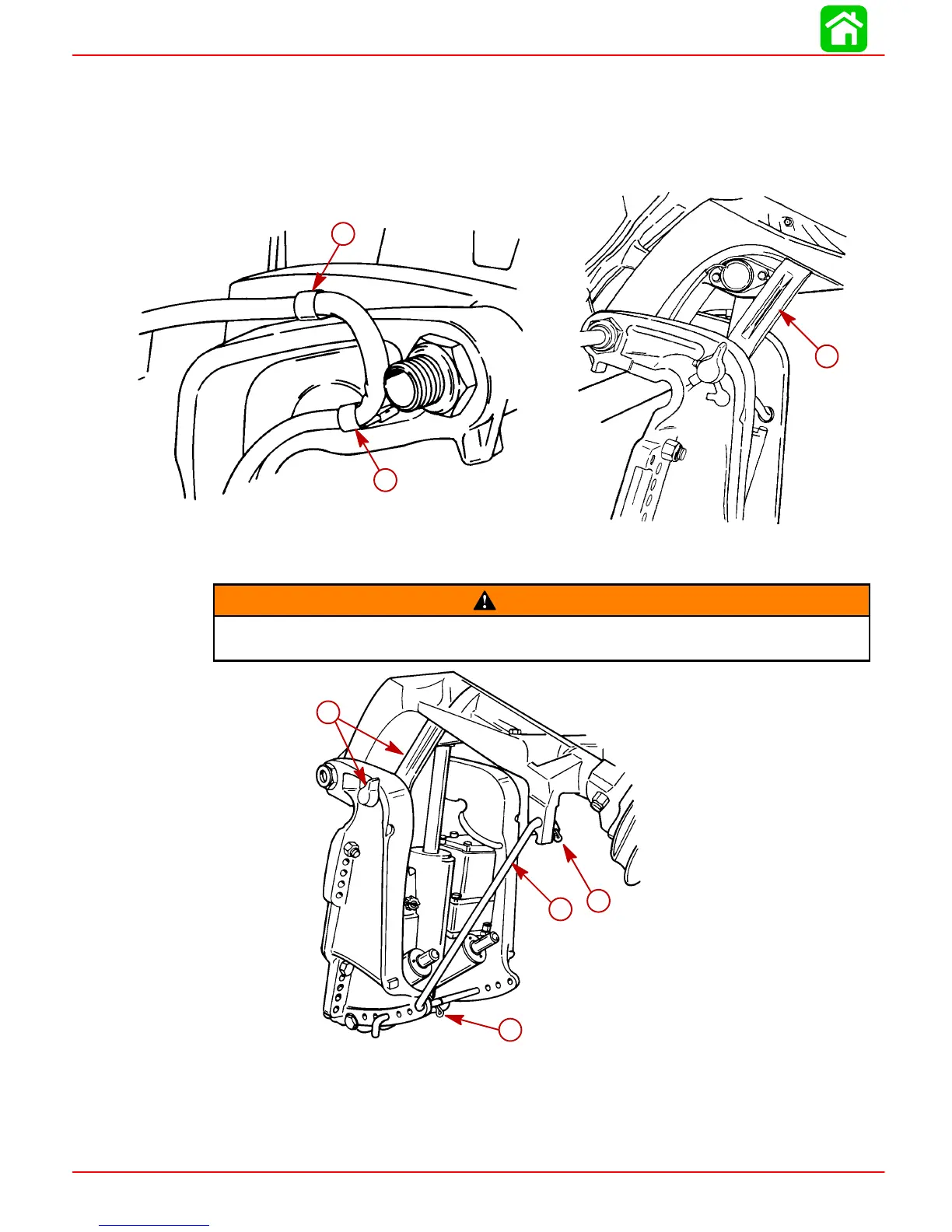

1. Remove clamps on transom bracket to free power trim wiring.
2. Raise outboard to full “Up” position and engage tilt lock lever.
50605
b
51377
a
a
a-Clamps
b-Tilt Lock Lever
WARNING
Failure to support outboard as shown could result in personal injury and/or dam-
age to outboard or boat.
51346
b
c
c
a
a-Tilt Lock Lever
b-Support Tool
c-Retaining Clips
IMPORTANT: Support outboard as shown above to prevent engine from tipping
when power trim retaining pin is removed.

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
