Mercury Optimax 135 Service Manual

OUTBOARD MOTOR INSTALLATION
Page 1D-12 90-855347R1 JANUARY 1999
d. Return remote control handle to neutral. The propeller should turn freely without
drag. If not, adjust barrel closer to cable end guide. Repeat steps a thru d.

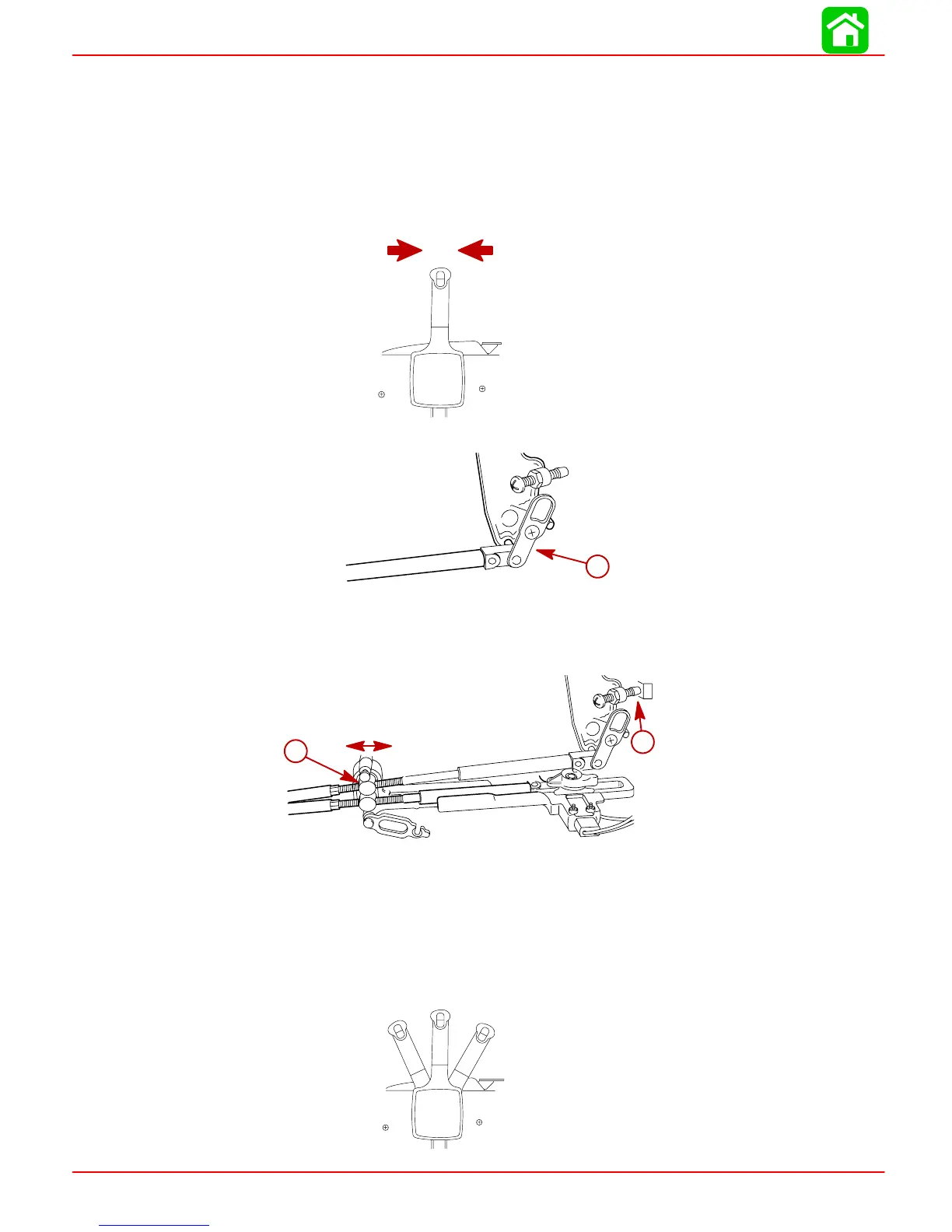

Throttle Cable
INSTALLATION
1. Position remote control into neutral.
N
2. Attach throttle cable to the throttle lever. Secure with latch.
a
a-Latch
3. Adjust the cable barrel so that the installed throttle cable will hold the idle stop screw
against the stop.
a
b
a-Cable Barrel – Adjust To Hold Idle Stop Screw Against Stop
b-Idle Stop Screw
4. Check throttle cable adjustment as follows:
a. Shift outboard into gear a few times to activate the throttle linkage. Make sure to
rotate the propeller shaft while shifting into reverse.
N
R
F

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
