DIRECT FUEL INJECTION
90-855347R1 JANUARY 1999 Page 3B-21
High Pressure Electric Fuel Pump
1. Install Pressure Gauge Assembly 91-852087A1/A2 to starboard fuel rail pressure test
valve.
NOTE: After 15 seconds of cranking engine with starter motor, fuel pressure gauge
should indicate 89
±
2 psi (613.5
±
13.8 kPa).
56146
d
b
a

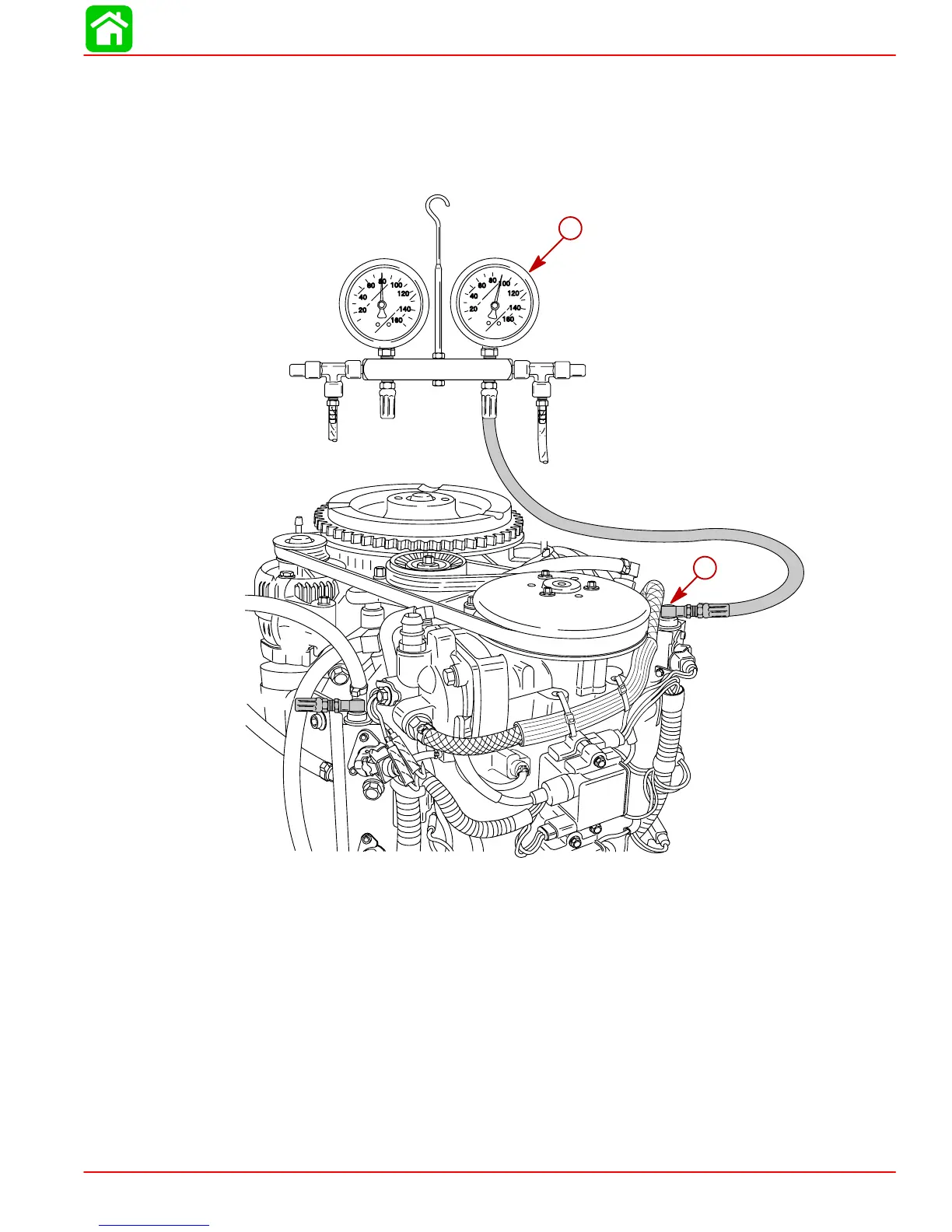

a-Fuel Pressure Gauge (Should Indicate 89 ± 2 psi (613.5 ± 13.8 kPa)
b-Fuel Pressure Test Valve
