Mercury Optimax 135 Service Manual

POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-31

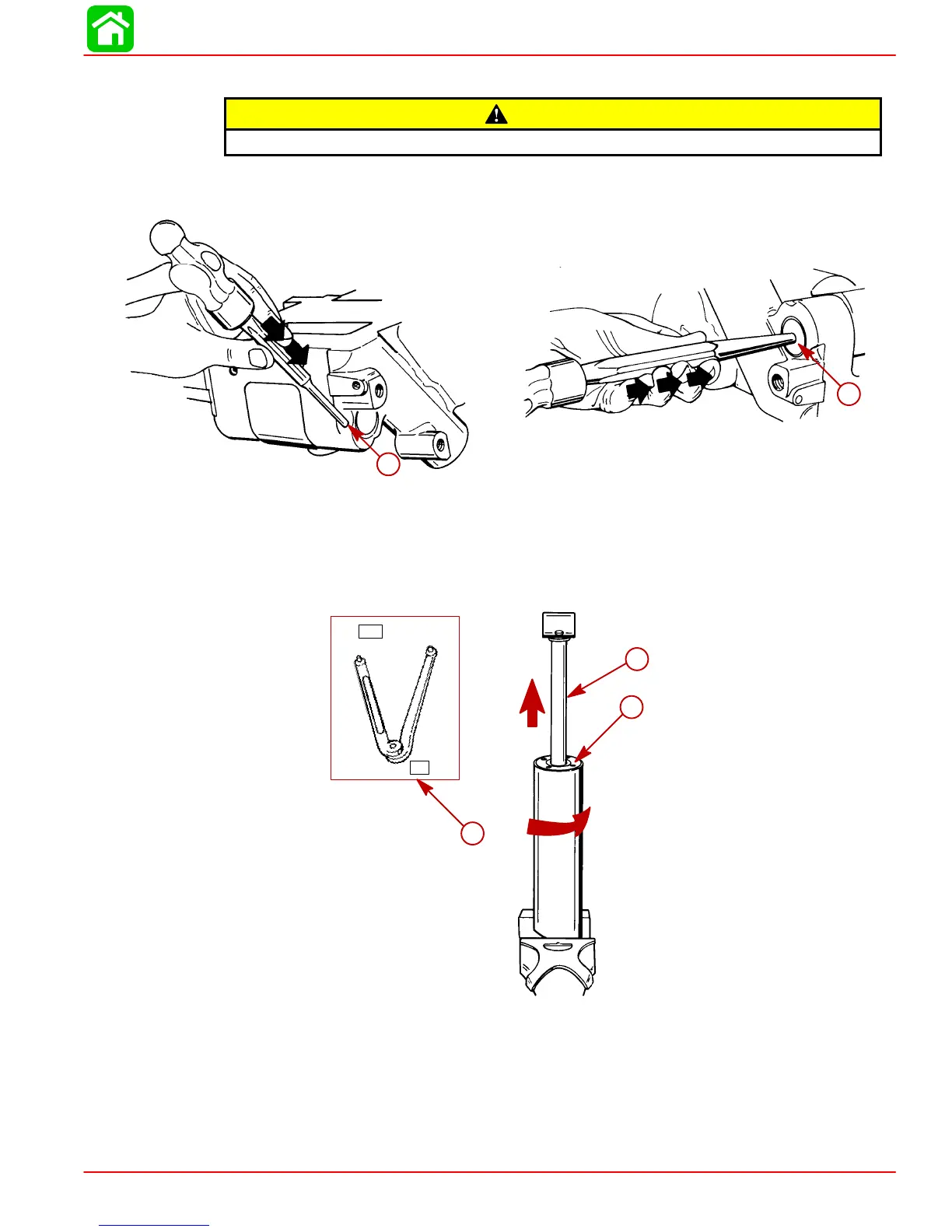

TILT RAM REMOVAL - POWER TRIM SYSTEM REMOVED FROM OUTBOARD
CAUTION
Insure trim system is depressurized prior to tilt ram removal.
1. Remove cross pin.
2. Remove lower swivel pin.
51355
51366
a
b
a-Cross Pin (Remove as shown)
b-Lower Swivel Pin (Remove as shown)
Disassembly
1. Secure tilt ram in a soft jawed vise. Remove tilt rod and cap.
51364
51337
91-74951
a
b
c
a-Cap (Turn Counterclockwise to Remove)
b-Spanner Wrench (91-74951)
c-Tilt Rod - Pull to Remove

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
