Mercury Optimax 135 Service Manual

DIRECT FUEL INJECTION
Page 3B-6 90-855347R1 JANUARY 1999

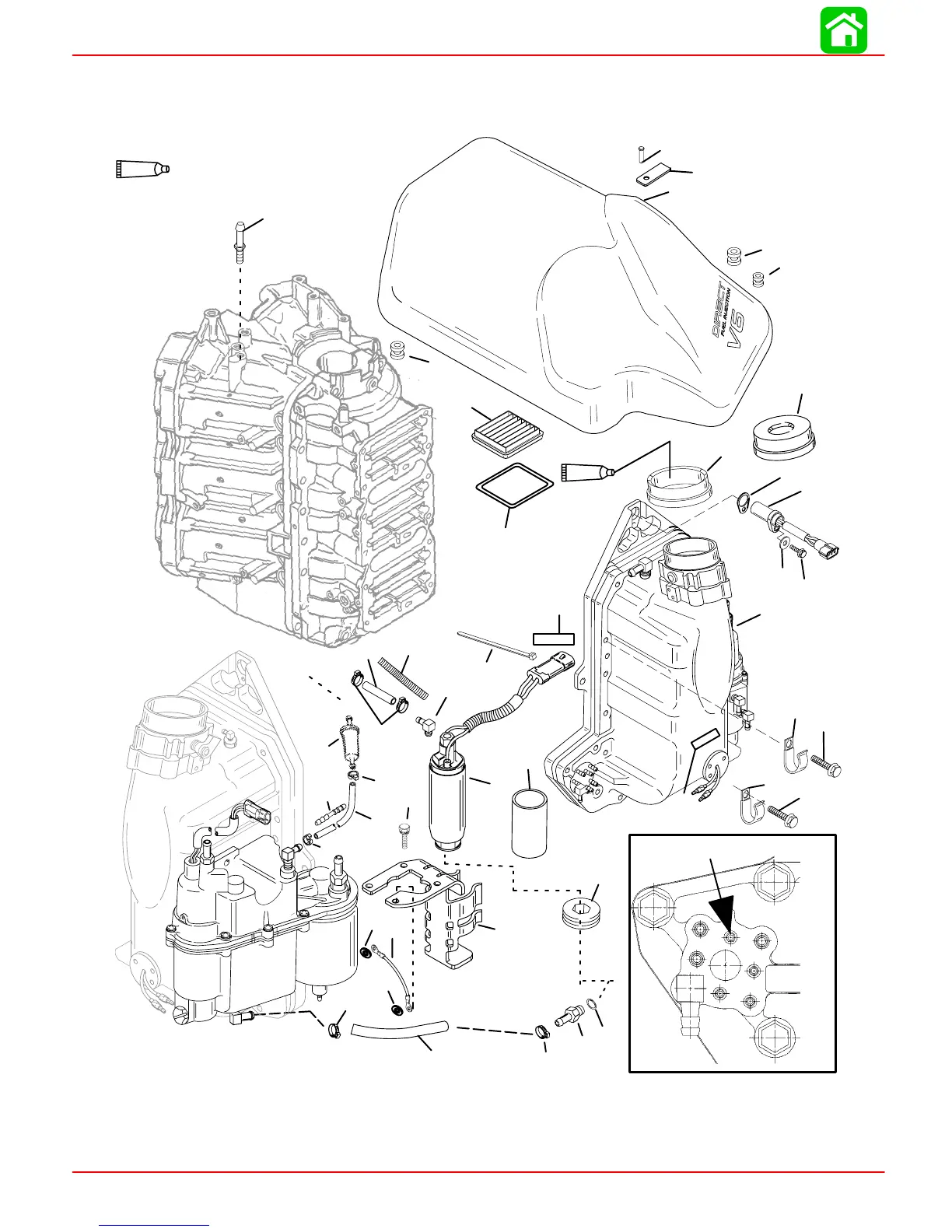

Air Handler
A = OIL LINE TO COMPRESSOR
B = TO FITTING IN FLYWHEEL COVER
C = PRESS INTO TUBING
Loctite Superbonder 454 GEL
96
10
25
12
2
30
3
26
8
1
2
30
5
6
A
35
96
4
29
27
36
28
9
13
16
19
20
21
22
23
17
17
17
18
24
7
33
33
31
32
B
C
34
37
15
38
39
40
11
14

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
