OIL INJECTION
Page 3C-2 90-855347R1 JANUARY 1999

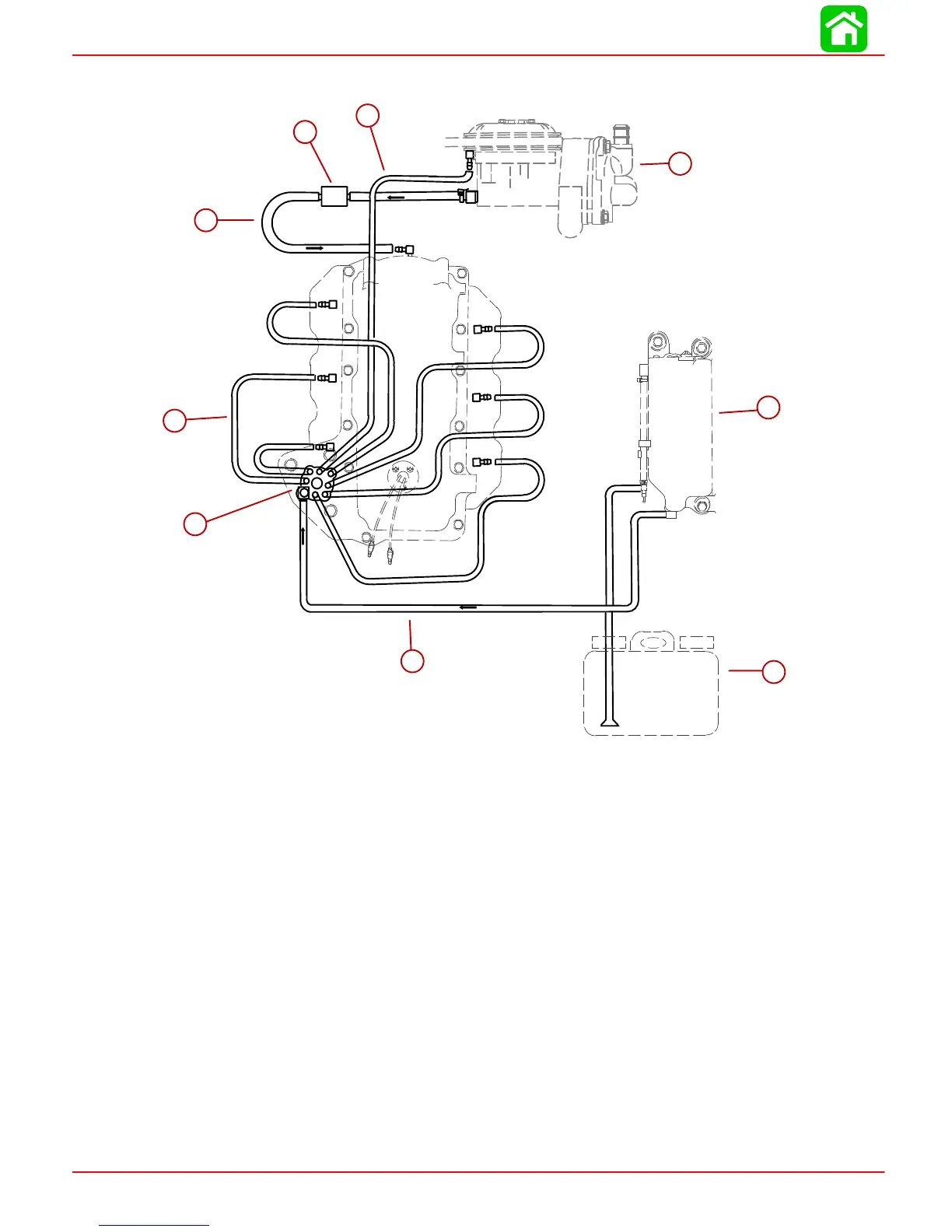

Oil System
f
h
a
b
c
d
e
g
i
a-Remote Oil Tank
b-Engine Oil Reservoir
c-Oil Supply Hose to the Oil Pump
d-Oil Pump
e-Oil Supply Hoses to the Cylinders (6)
f-Oil Supply Hose to the Air Compressor
g-Air Compressor
h-Check Valve
i-Oil Return Hose from the Air Compressor
