Mercury Optimax 135 Service Manual

POWER TRIM
Page 5B-48 90-855347R1 JANUARY 1999
Trim Indicator Gauge Needle Adjustment
1. Turn ignition key to “RUN” position.
2. Tilt outboard to full “IN” position. Needle of trim indicator gauge should be in full “IN”
position.
3. If not, tilt outboard to full “OUT” position to gain access to trim sender and engage tilt
lock lever.
4. Loosen trim sender screws and reposition trim sender.
5. Tighten trim sender screws.
a
b
c
d
e
22744

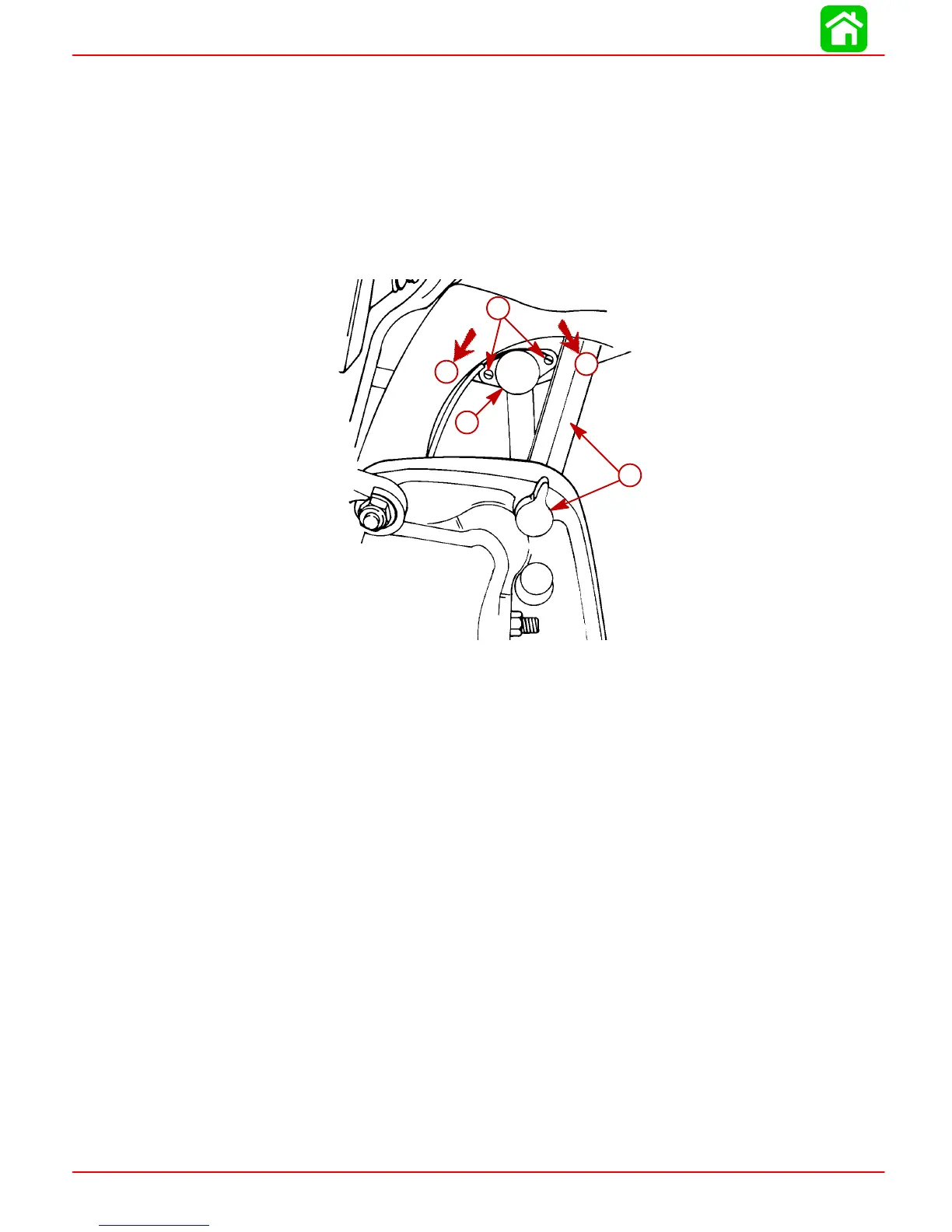

a-Trim Sender
b-Screws, Loosen to Rotate Sender
c-Turn Sender Counterclockwise to raise needle reading
d-Turn Sender Clockwise
to Lower Needle Reading
e-Tilt lock lever

Mercury Optimax 135 Specifications

General

Engine Type	V6
Horsepower	135 HP
Fuel Induction System	2-stage direct fuel injection
Full Throttle RPM Range	5000-5750 RPM
Alternator Output	60 amp / 756 watt
Starting System	Electric
Steering	Remote
Dry Weight	431 lbs
Shaft Length	20", 25"
