WIRING DIAGRAMS
90-855347R1 JANUARY 1999 Page 2D-19
Problem Horn Check
Engine
Light
Low Oil
Light
Over
Heat
Light
Water In
Fuel
Light
Engine Speed
Reduction Acti-
vated
(approx. 3000
RPM)
Over Heat Cyl. Head/
Compressor
Continu-
ous Beep
Yes Yes
Throttle Sensor Failure Continu-
ous Inter-
mittant
Beeping
Yes RPM reduces to
3000 if 1 sensor
fails. RPM is re-
duced to Idle
speed only if both
sensors fail.

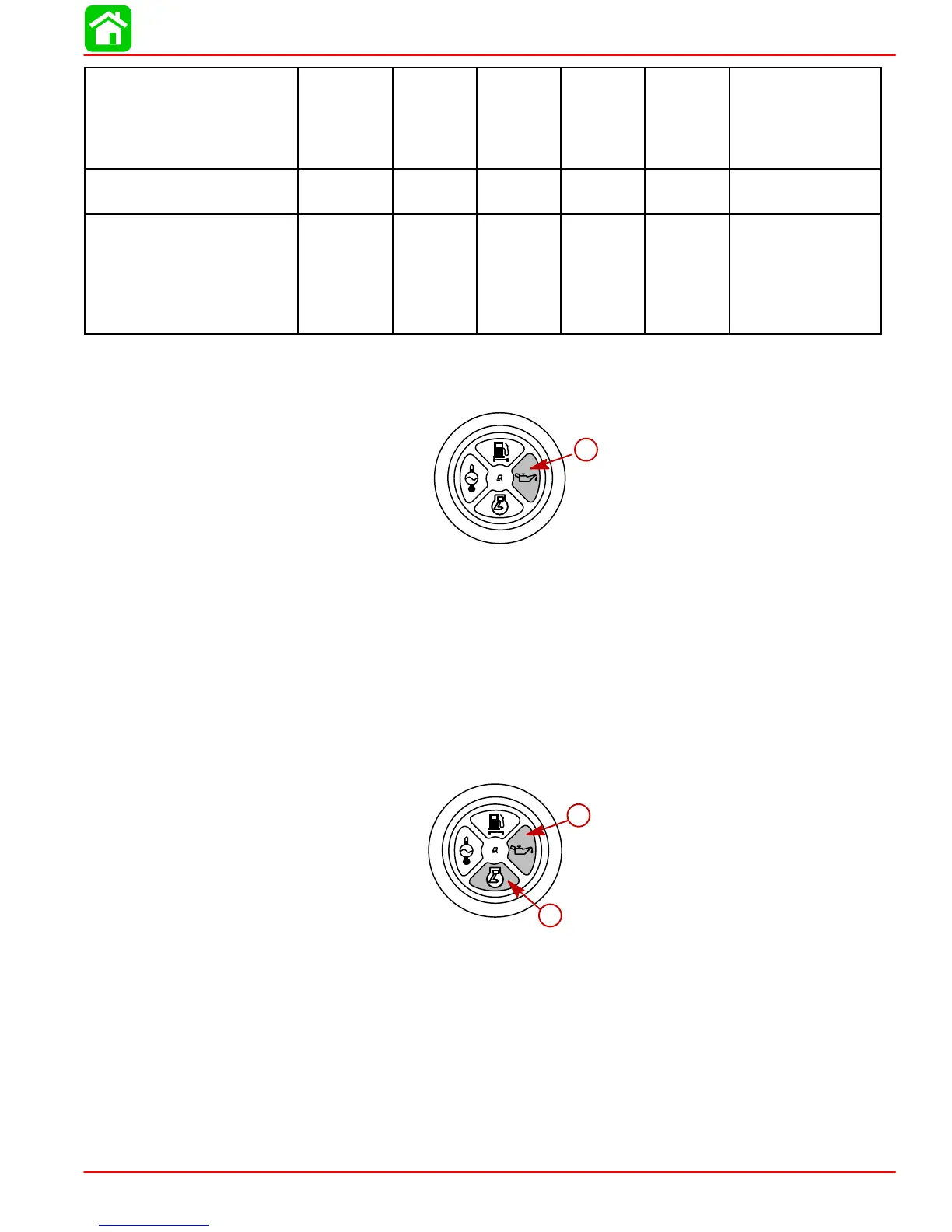

Warning System Operation
LOW OIL LEVEL
a
a
The system is activated when the oil in the engine mounted oil reservoir tank drops below
22 fl. oz. (175 ml) You still have an oil reserve remaining for 30 minutes of full speed opera-
tion.
NOTE: The engine mounted oil reservoir tank (located beneath the top cowl) along with
the remote oil tank will have to be refilled.
The OIL light (a) will come on and the warning horn sounds a series of four short tones.
If you continue to operate the outboard, the light will stay on and the horn will sound four
short tones every two minutes. The engine has to be shut off to reset the warning system.
NO OIL FLOW TO THE ELECTRIC OIL PUMP
a
b
a
b
The system is activated when the flow of oil to the oil pump is blocked. No lubricating oil
is being supplied to the engine. Stop the engine as soon as possible. Continuing to oper-
ate the engine can result in severe engine damage.
The OIL light (a) and CHECK ENGINE light (b) will come on and the warning horn will be-
gin sounding. The warning system will automatically reduce and limit the engine speed
to 3000 RPM. The engine has to be shut off to reset the warning system.
To Next Page
