13. Rotate crankshaft several times (using powerhead stand) to assure free operation
(no binds and catching).

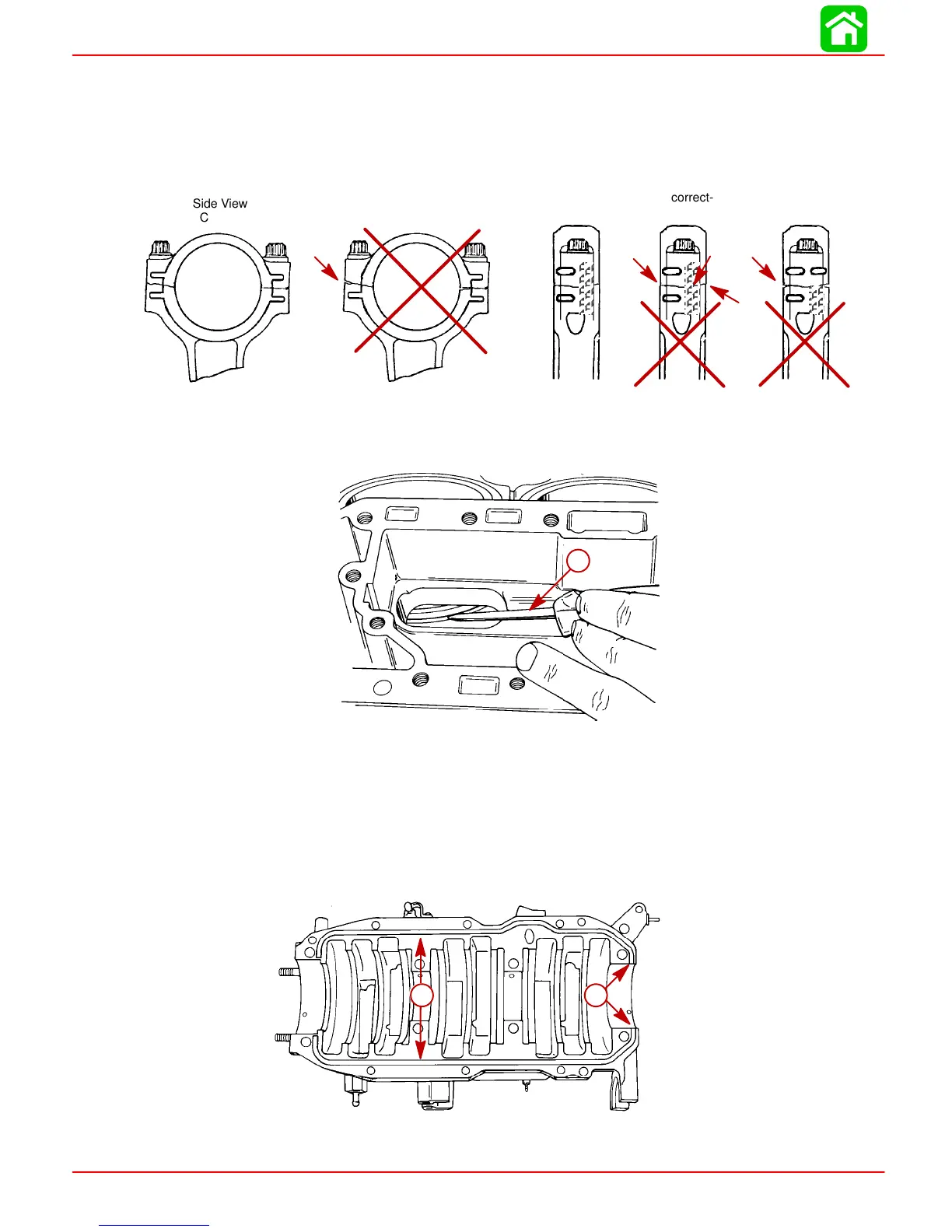

Connecting Rod Cap Alignment
Check each connecting rod cap for correct alignment. If not aligned, a ridge can be seen
or felt at the separating line as shown below. Correct any misalignment.
Side View
Correct
End View
Correct
Side View
Incorrect-Cap
on Backwards
End View
Incorrect-Cap
on Backwards
End View
Incorrect-
Not Aligned
14. Verify that no piston rings were broken during installation by pressing in on each piston
ring thru exhaust port using a screwdriver. If no spring tension exists (ring fails to re-
turn to position), it’s likely ring is broken and must be replaced.
51852
a
a-Screwdriver
Crankcase Cover Installation
1. Thoroughly remove all oil from mating surfaces of crankcase cover and cylinder block
with Loctite 7649 Primer (92-809824).
2. Install gasket strips into grooves in crankcase cover. Trim end of each gasket strip
flush with edge of cover as shown.
51852
a
b
a-Gasket Strips
b-Edge of Cover
To Next Page
